| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1プラスチック袋2カートン3顧客の要求に応じて |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T,D/P,L/C,D/A ウェスタンユニオン マネグラム |
| 供給の能力: | 100000ペア モントリー |
| ピン: | 4ピン | 現在の評価: | 15a |
|---|---|---|---|
| 定格電圧: | 300V | 性別: | 男性から女性 |
| コネクタタイプ: | スピードコネクタ | 材料: | ナイロン |
| 色: | 赤青白黒黄 | 難燃性等級: | UL94-V0 |
| ハイライト: | IP67 waterproof M19 connector,4 pin male female connector,outdoor waterproof electrical connector |
||

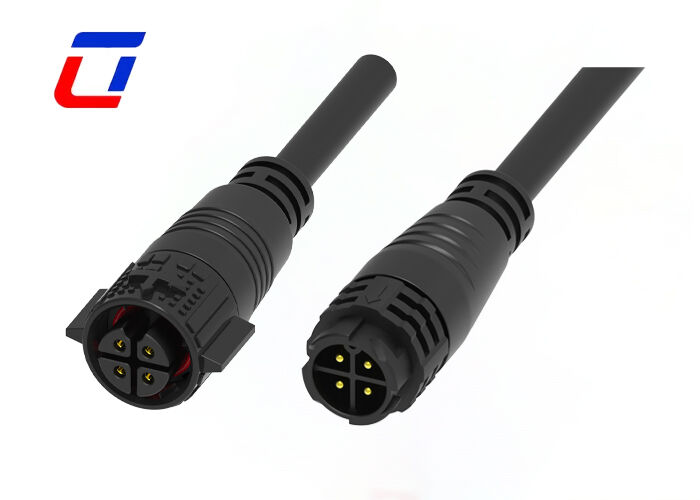

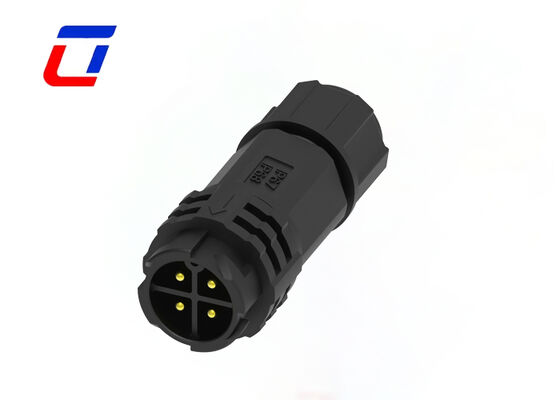

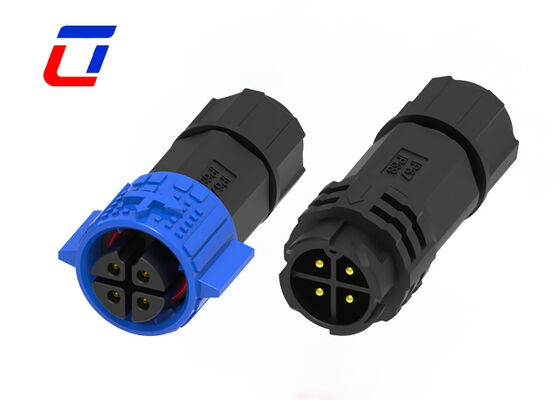

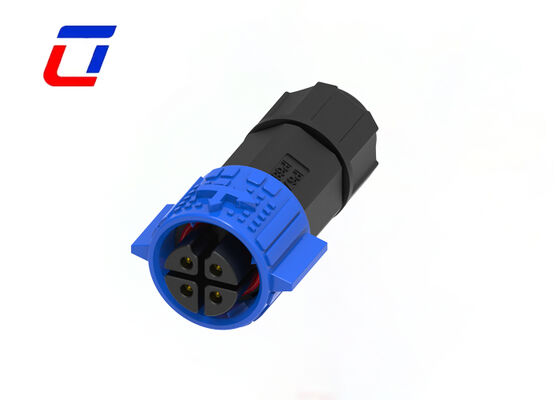

IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector
Quick Description
Main Features
| Electrical Parameters | |
| Number of Poles | 4Pin |
| Current Rating | 15A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1000VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Application industries
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: What shipping methods do you offer? How long is the delivery time?
A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.
