| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M16 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1プラスチック袋2カートン3顧客の要求に応じて |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T,D/P,L/C,D/A ウェスタンユニオン マネグラム |
| 供給の能力: | 100000ペア モントリー |
| タイプ: | 防水コネクター | ピン: | 2+4ピン |
|---|---|---|---|
| 現在の評価: | 5A、10A | 材料: | PA66,UL94-V0 |
| 防水レベル: | IP67 | 動作温度: | -40℃-+105℃ |
| ハイライト: | M16 waterproof quick lock connector,IP67 multi pin male female connector,2 power 4 signal waterproof connector |
||

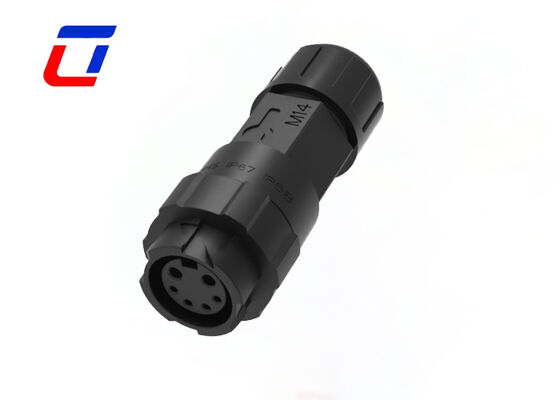

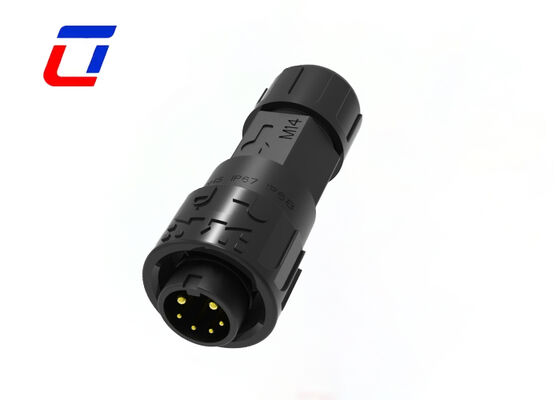

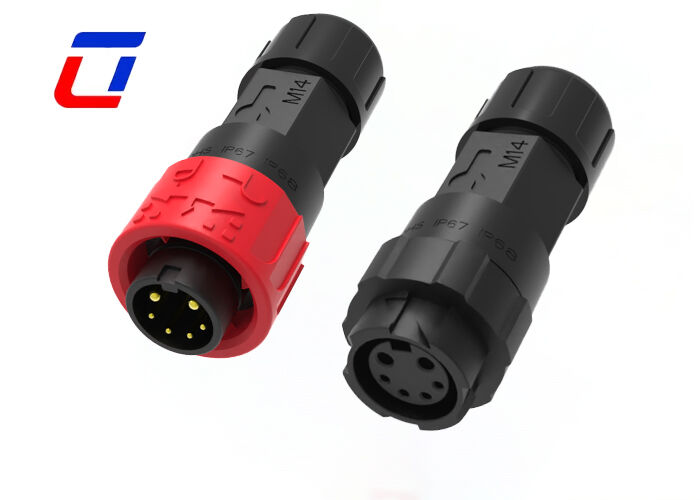

PA66 Plastic 2+4 Multi Pin Ip67 Waterproof Connector M16
Application industries
Quick Description
Dual-Function Transmission: Integrates 2 power pins and 4 signal pins in one connector, enabling simultaneous stable power supply and precise signal transmission—simplifies wiring and reduces installation complexity for multi-functional devices.
Wide Application Compatibility: Suitable for industrial automation, outdoor lighting, marine equipment, sensors, control systems, and other devices requiring reliable power/signal transmission in demanding conditions.
In M16 model connectors, both wire to wire and wire to board version is available. Moreover, soldering terminals and screw terminals both options for connecting wire.
| Electrical Parameters | |
| Number of Poles | 2+4pin waterproof connector |
| Current Rating | 15+5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
Q1:Who is responsible for customs clearance? Do you provide necessary documents?
A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
Q2: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
Q3: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
Q4: Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
