| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M16 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1プラスチック袋2カートン3顧客の要求に応じて |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T,D/P,L/C,D/A ウェスタンユニオン マネグラム |
| 供給の能力: | 100000ペア モントリー |
| ピン: | 7ピン | コネクタタイプ: | スピードコネクタ |
|---|---|---|---|
| 現在の評価: | 5a | 定格電圧: | 60V |
| 材料: | ナイロン | 保護レベル: | IP67 |
| ハイライト: | M16 waterproof automotive connector,7 pin low power signal connector,waterproof male female electrical connector |
||

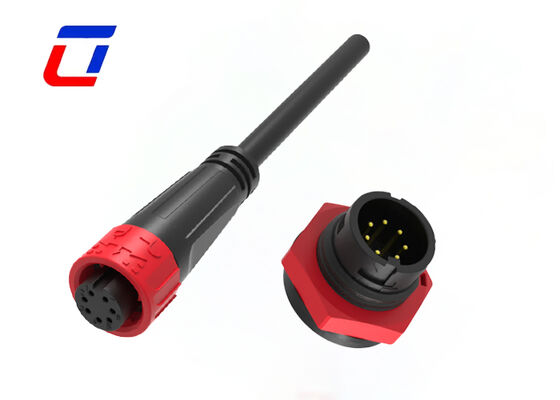

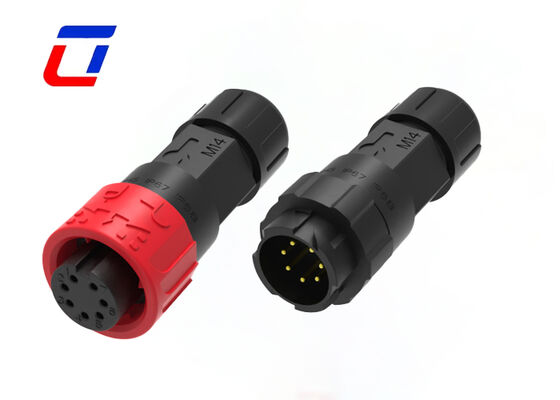

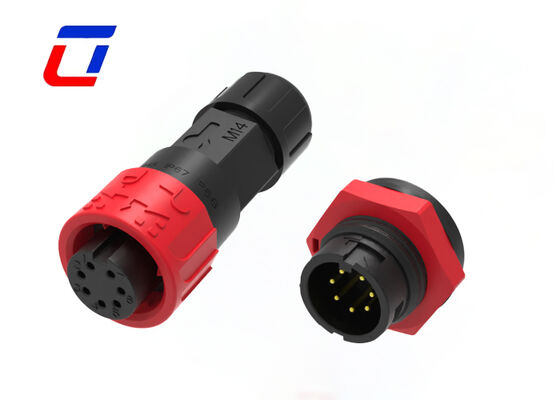

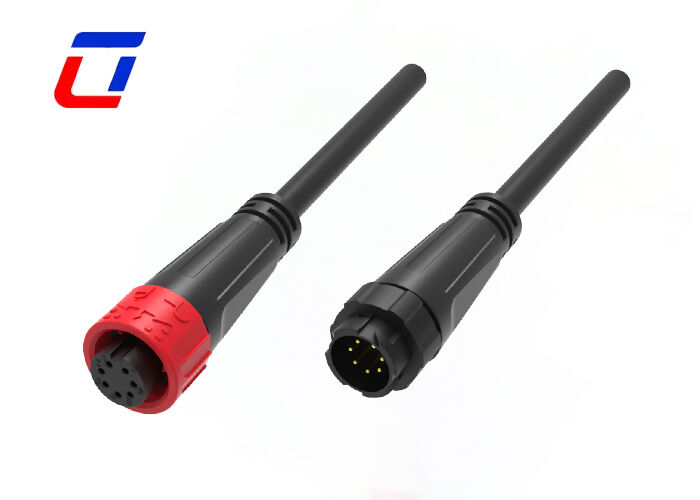

M16 Male Female 7 Pin Waterproof Automotive Connectors For Low Power Signal
Main Features
Quick Description
7 Pin Precision for Low Power Signals: Optimized 7-pin configuration is tailored for stable low-power signal transmission, enabling accurate data and signal transfer across automotive electronic systems (e.g., sensors, lighting controls) without interference.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
| Electrical Parameters | |
| Number of Poles | 7Pin |
| Current Rating | 5A max. |
| Voltage Rating | 60VAC max |
| Durability Voltage | 500VAC @ 60 s. |
Application industries
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: How to track my shipment?
A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
