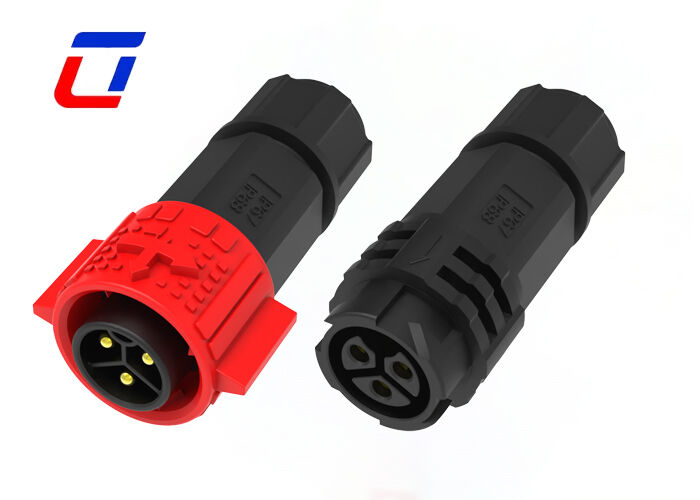

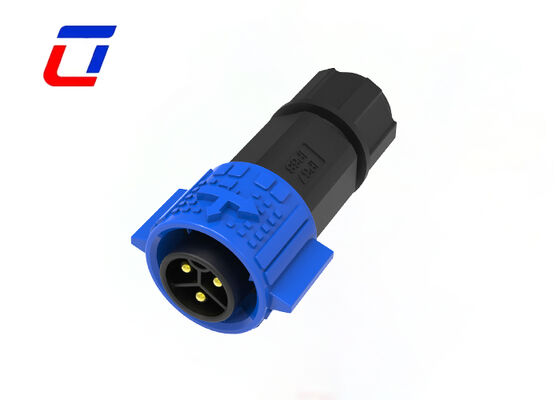

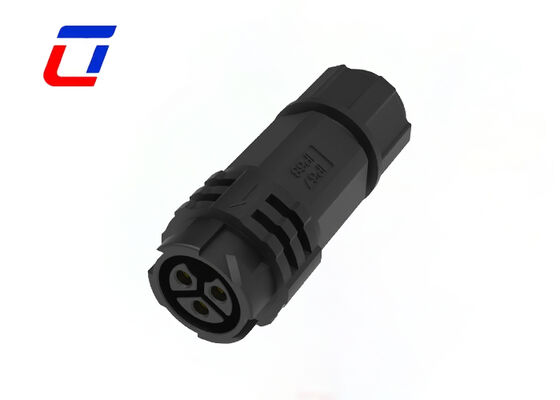

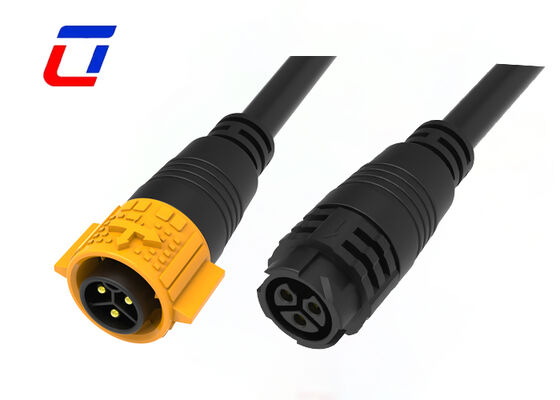

M19 3ピン 300V 防水ケーブル接続器 工業用 迅速ロック

M19 3ピン 300V 防水ケーブル接続器 工業用 迅速ロック

  • M19 3ピン 300V 防水ケーブル接続器 工業用 迅速ロック
  • M19 3ピン 300V 防水ケーブル接続器 工業用 迅速ロック
  • M19 3ピン 300V 防水ケーブル接続器 工業用 迅速ロック
  • M19 3ピン 300V 防水ケーブル接続器 工業用 迅速ロック
M19 3ピン 300V 防水ケーブル接続器 工業用 迅速ロック
商品の詳細:
起源の場所: 中国
ブランド名: Ulinkcon
証明: CE/Rohs/TUV/UL
モデル番号: M19
お支払配送条件:
最小注文数量: 交渉
価格: 交渉可能
パッケージの詳細: 1プラスチック袋2カートン3顧客の要求に応じて
受渡し時間: 3~6 営業日
支払条件: T/T,D/P,L/C,D/A,ウェスタン・ユニオン
供給の能力: 100000ペア モントリー
連絡先
詳細製品概要
性別: 男性から女性へ 色: 白青赤黒黄
材料: PA66 および真鍮錫メッキ 電流定格: 20A
定格電圧: 300V 難燃性等級: UL94-V0
ハイライト:

M19防水ケーブルコネクタ

,

3ピン式快鍵コネクタ

,

300V産業用防水コネクタ

M19 3ピン 300V 防水ケーブルコネクタ クイックロック 工業生産用
製品概要

M19 3ピン 300V 防水ケーブルコネクタは、工業生産のシナリオ向けに特別に設計されており、安全な伝送と効率的な運用を両立させるコア接続コンポーネントとして機能します。産業グレードの信頼性でエンジニアリングされており、自動生産ライン、機器制御ユニット、その他のアプリケーションと互換性があり、湿気やほこりの多い環境での信号および電力伝送の課題を効果的に解決します。

主な特徴
  • 品名: M19 防水ケーブルコネクタ
  • 仕様: ストレートオス-メス嵌合、エルボオス-メス嵌合、フロントマウントワイヤー対基板、リアマウントワイヤー対基板、一体成形
  • カップリング方式: セルフロック
  • ピン数: 2-22ピン
  • プラグ: アセンブリタイプとインジェクションタイプが利用可能
  • ソケット: フロントマウント、バックマウント、PCBマウント
  • 防水等級: IP67/IP68
  • コネクタタイプ: アセンブリロックねじ; アセンブリ溶接; ケーブル付きインジェクション成形
  • 電線ゲージ: 1.0-6.0mm² (18AWG-10AWG)
  • 組み立て時の配線範囲: 6.0mm~16mm; 成形 6.0mm~16.5mm
  • 耐久性: 3000回
  • 適用温度: -40℃~105℃
技術仕様
電気的パラメータ
極数 3ピン防水ワイヤーコネクタ
定格電流 最大20A
定格電圧 最大300VAC
耐電圧 1500VAC @ 60秒
技術的パラメータ
接触抵抗 最大10mΩ
絶縁構造 500VDCで500MΩ
動作温度 -40℃~+105℃
IPクラス 嵌合時 IP67 (1m / 30分)
モールド材質 PA66
コンタクト/端子材質 金メッキ真鍮
シール材 シリコン
操作パラメータ
定格電圧 最大600VAC
定格電流 最大15A
最小ワイヤーサイズOD 3.0mm~6.0mm
最大ワイヤーサイズOD 8.0mm~10.0mm
最大ケーブル断面積 0.5mm²~2.5mm²
デザインスケッチ
M19 3 Pin Waterproof Cable Connector design illustration M19 3 Pin Waterproof Cable Connector technical diagram
よくある質問
どのような配送方法がありますか?配送時間はどのくらいですか?
複数の配送オプションを提供しています:1) 宅配便 (DHL/UPS/FedEx): 小包の場合は3~7営業日; 2) 航空貨物: 7~15営業日; 3) 海上貨物: 20~45営業日。配送時間は目的地と配送方法によって異なります。
USD以外の通貨での支払いも受け付けていますか?
デフォルト通貨はUSDですが、EUR、GBP、その他の主要通貨も受け付けています。注文時に営業チームに為替レートを確認してください。
いつ注文を出荷しますか?
通常、お支払い受領後2~3日ですが、注文数量と生産スケジュールに基づいて交渉可能です。
カスタムラベルを付けることはできますか?
はい、もちろんです。独自のプライベートラベルとパッケージを作成できます。パッケージデザインが必要な場合は、専門のデザイナーもおりますのでご利用ください。
