| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 高品質の輸出カートン |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T,D/A,D/P,MoneyGram,L/C |
| 供給の能力: | 毎月100000ペア |
| ピンの数: | 6ピン | 現在: | 10a |
|---|---|---|---|
| 定格電圧: | 300V | 防水定格: | IP67 |
| 接続モード: | 錠を押しなさい | 色: | 赤青白黒黄 |
| ハイライト: | 6 pin IP67 waterproof connector,M19 dustproof wire splice connector,waterproof circular connector with warranty |
||

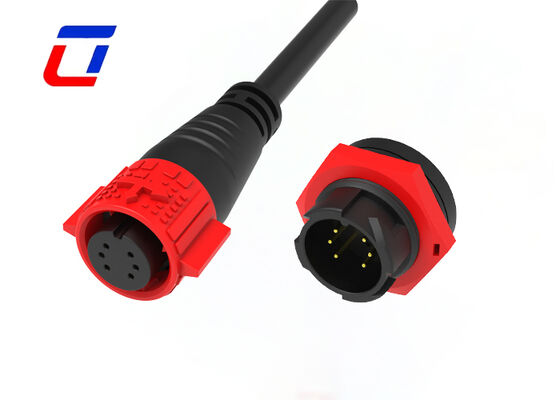

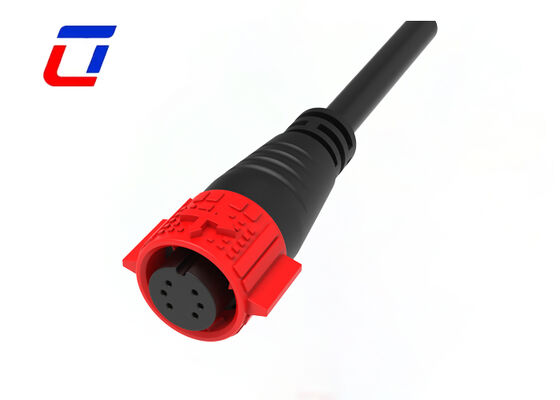

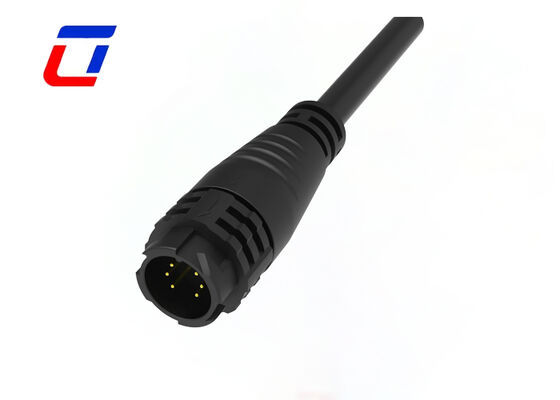

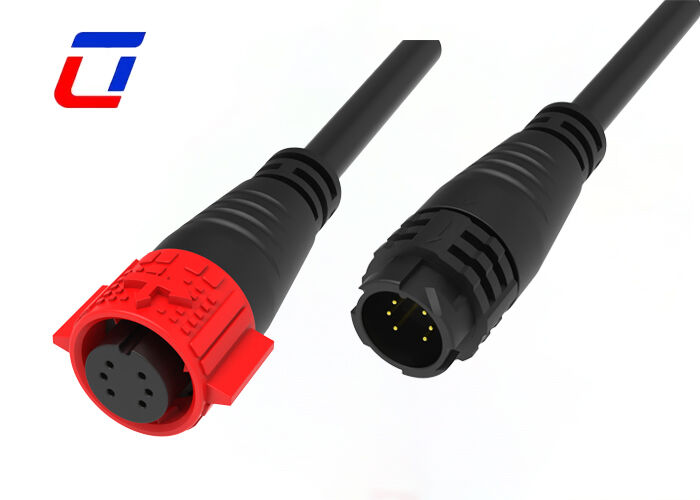

6 Pin IP67 Connector M19 Dustproof Waterproof Wire Splice Connector
Description of Industrial Waterproof Circular Connector
It's also a good choice for the applications which requests wire connections in soldering with the suitable contact pin size.
Main Feature
| Electrical Parameters | |
| Number of Poles | 6Pin waterproof connector |
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1000VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
Production Dimension
More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q2:What is rated Current?
A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q3:Who is responsible for customs clearance? Do you provide necessary documents?
A3: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
