| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1プラスチック袋2カートン3顧客の要求に応じて |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T,D/P,L/C,D/A ウェスタンユニオン マネグラム |
| 供給の能力: | 100000ペア モントリー |
| Pin: | 8Pin | Gender: | Male to Female |
|---|---|---|---|
| Current rating: | 5A | Connector type: | Quick connector |
| Material: | Nylon | Rated voltage: | 300V |
| Operating temperature: | -40℃-+105℃ | Flame-sesistant rating: | UL 94-V0 |
| ハイライト: | 8 pin waterproof circular connector,M19 male female wire connector,waterproof cable connector with warranty |
||

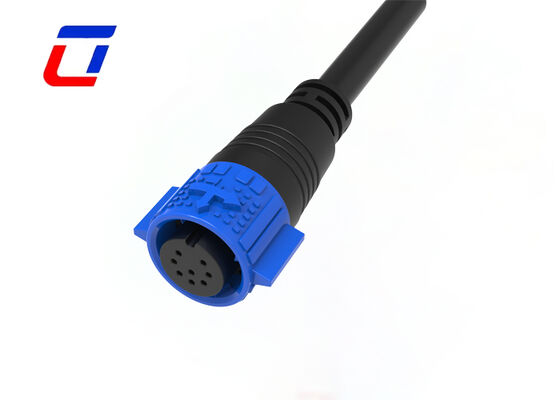

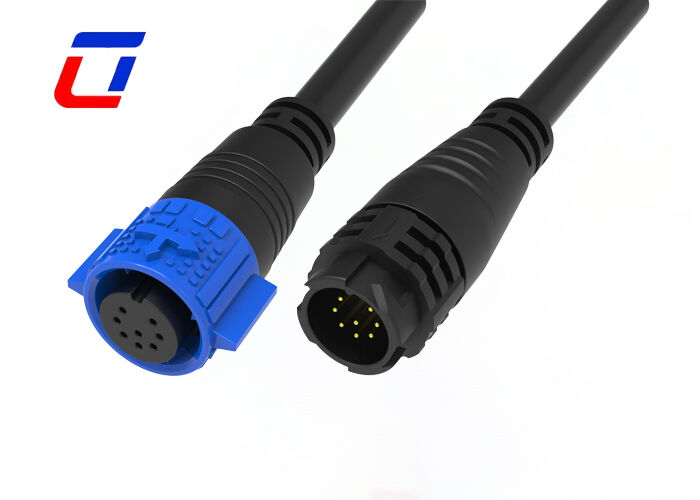

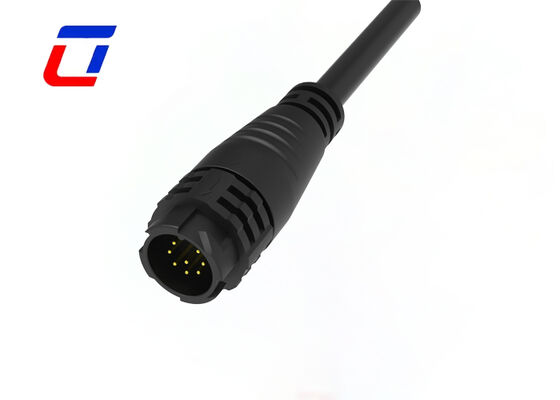

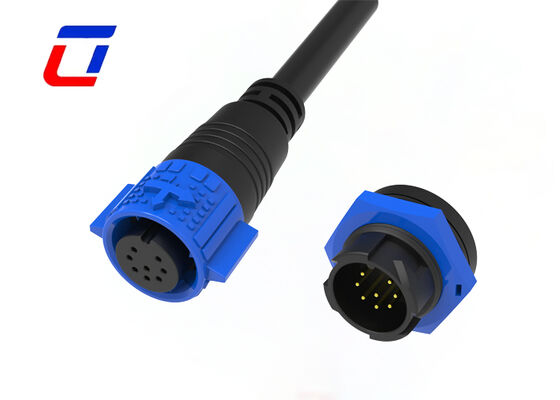

8 Pin Circular Connector M19 Male Female Wire Waterproof Connectors
Quick Description
This model connectors is specialized for various signal/data applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
The male-female circular structure features a tight anti-vibration locking mechanism, preventing accidental disconnection caused by mechanical impact or operational vibration. Crafted from high-grade weather-resistant plastic housing and corrosion-resistant metal contacts, it boasts excellent durability and a long service life even in harsh conditions like saltwater exposure or chemical corrosion.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
Main Features
Application industries
| Electrical Parameters | |
| Number of Poles | 8Pin |
| Current Rating | 5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: What payment methods do you accept?
A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
