| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1プラスチック袋2カートン3顧客の要求に応じて |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T,D/P,L/C,D/A ウェスタンユニオン マネグラム |
| 供給の能力: | 100000ペア モントリー |
| Pin: | 9Pin | Current rating: | 5A |
|---|---|---|---|
| Gender: | Male to Female | Material: | Nylon |
| Protection level: | IP67 | Copper needle coating: | Gold-plated |
| ハイライト: | 9 pin waterproof data connector,M19 IP67 LED connector,waterproof data connector for LED |
||

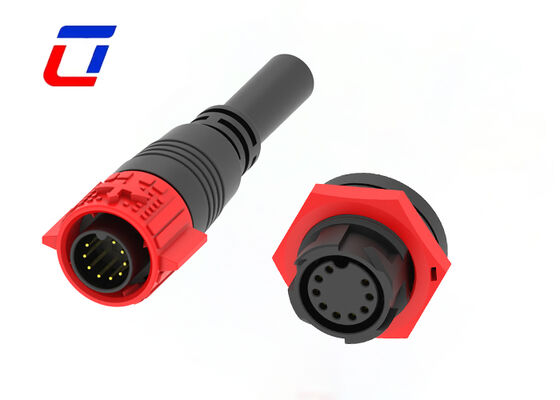

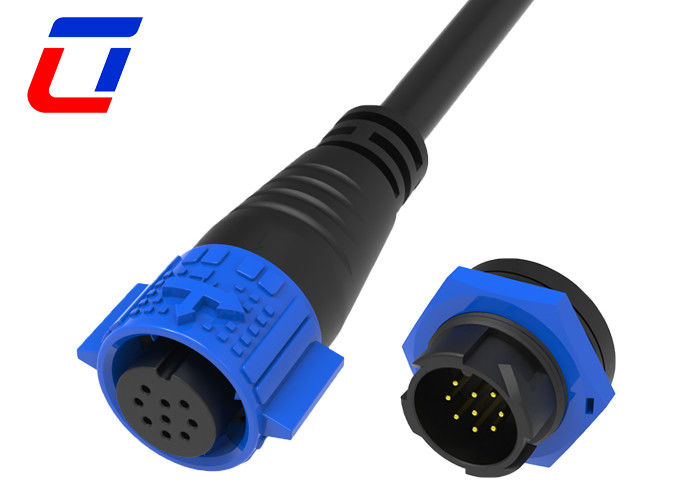

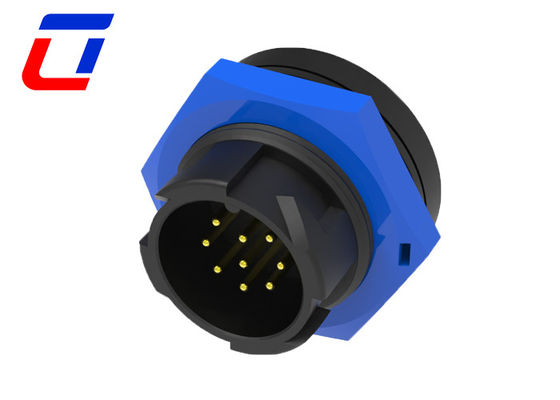

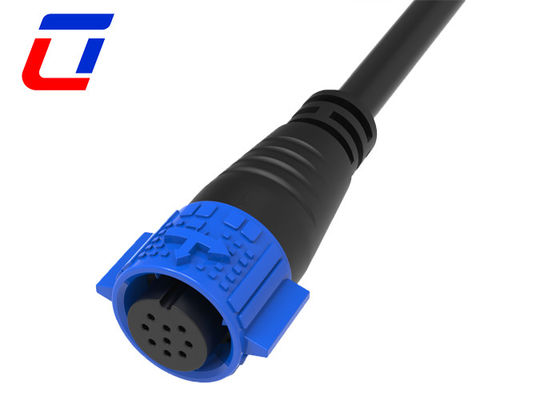

9 Pin Data Connector M19 IP67 Waterproof Connector For LED
Main Features
Application industries
Quick Description
Professional Technical Consultation: Our experienced engineering team offers one-on-one support to address inquiries about pin definitions, data transmission speed, power load capacity, environmental adaptability, and compatibility with your specific equipment (e.g., industrial sensors, communication devices, outdoor electronics). We provide tailored solutions based on your application scenarios to optimize performance.
Certification & Documentation Support: We provide detailed product specifications, IP67 test reports, and certification documents (CE, RoHS, UL, etc.) to meet your import, quality inspection, or project qualification requirements. Our team can explain compliance standards and technical parameters in detail to help you navigate regulatory hurdles.
Logistics & Cost Consultation: Based on your order quantity, delivery location, and project timeline, we offer personalized logistics solutions (air freight, sea freight, express delivery) with transparent pricing and accurate delivery time estimates. We also provide cost-saving suggestions for bulk orders to help you optimize your budget.
| Electrical Parameters | |
| Number of Poles | 6Pin |
| Current Rating | 5 Amax. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: Who is responsible for customs clearance? Do you provide necessary documents?
A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
