| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1プラスチック袋2カートン3顧客の要求に応じて |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T,D/P,L/C,D/A ウェスタンユニオン マネグラム |
| 供給の能力: | 100000ペア モントリー |
| Current rating: | 5A | Pin: | 12Pin |
|---|---|---|---|
| Rated voltage: | 300V | Gender: | Male to Female |
| Connector type: | Quick connector | Material: | Nylon |
| Color: | White Blue Red Black Yellow | Operating temperature: | -40℃-+105℃ |
| ハイライト: | 12 pin waterproof circular connector,IP67 M19 circular plug,waterproof socket 12 pin |
||

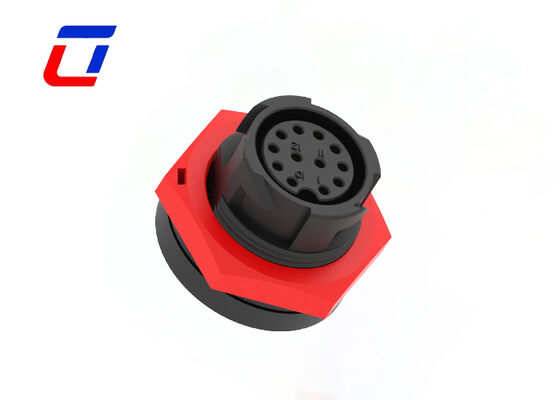

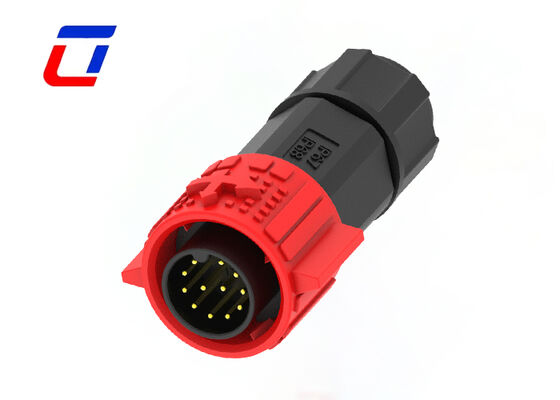

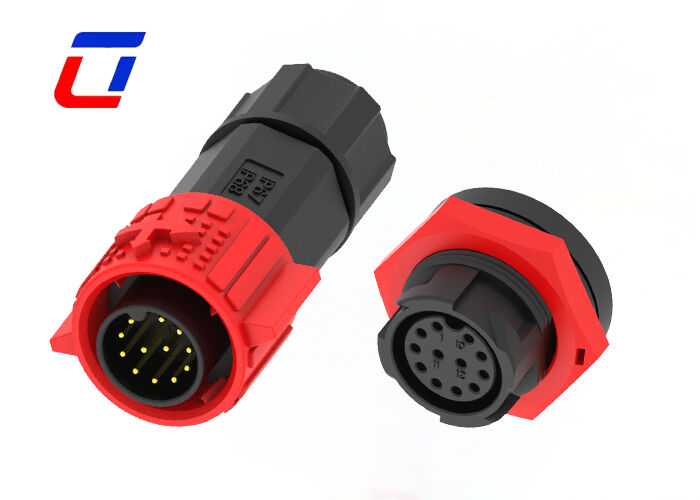

Waterproof Plug And Socket 12 Pin IP67 M19 Circular Connectors
Quick Description
M19 12-Pin IP67 Waterproof Plug & Socket – Circular Connectors engineered for reliable wet-environment applications. Boasts IP67 dust/waterproof rating, corrosion-resistant housing, and secure 12-pin connectivity to ensure stable signal/power transmission. Easy to mate and install, durable for long-term use in industrial equipment, outdoor electronics, lighting systems, and marine devices. Ideal for demanding environments requiring robust, moisture-proof electrical connections.
This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
In This model connector, Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
Main Features
| Electrical Parameters | |
| Number of Poles | 6Pin |
| Current Rating | 5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
