| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1プラスチック袋2カートン3顧客の要求に応じて |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T,D/P,L/C,D/A ウェスタンユニオン マネグラム |
| 供給の能力: | 100000ペア モントリー |
| Material: | PA66&Copper Alloy | Rated voltage: | 300V |
|---|---|---|---|
| Connector type: | self-locking male to female | Color: | White Blue Red Black Yellow |
| Protection level: | IP67 | Flame-resistant rating: | UL94-V0 |
| ハイライト: | waterproof M19 power connector,2 pin push locking connector,20 pin waterproof data connector |
||

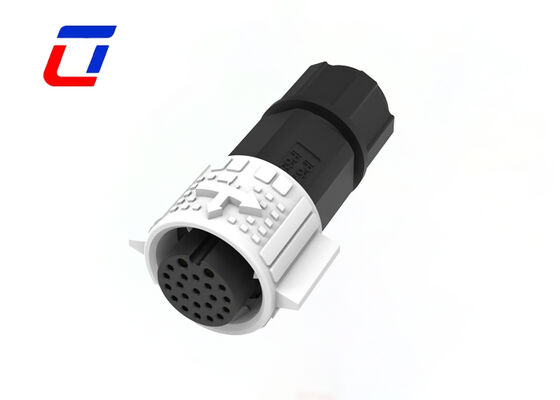

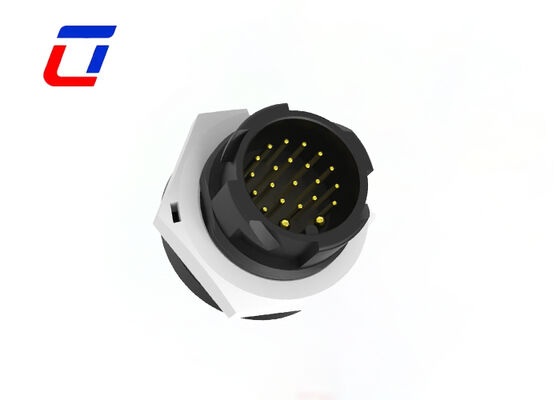

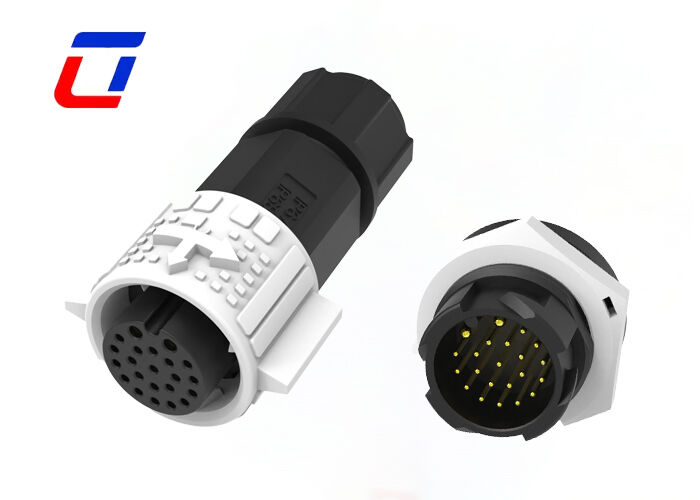

waterproof multi 2 pin For Power connectors M19 300V push locking 20 pin data connector
Quick Description
Application industries
| Electrical Parameters | |
| Number of Poles | 22pin waterproof connector |
| Current Rating | 20A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 20A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: What shipping methods do you offer? How long is the delivery time?
A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
