| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs |
| モデル番号: | M16 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 高品質の輸出カートン |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T、D/A、D/P、マネーグラム、L/C |
| 供給の能力: | 毎月100000ペア |
| 連絡先の数: | 4ピン | 現在: | 最大10A |
|---|---|---|---|
| 定格電圧: | 300V | 防水レベル: | IP67 |
| 銅針の材質: | 銅合金 | 直径範囲: | MAX9.00mm |
| ハイライト: | 4 pin waterproof LED connector,M16 wire to wire connector,PA66 locking circular connector |
||

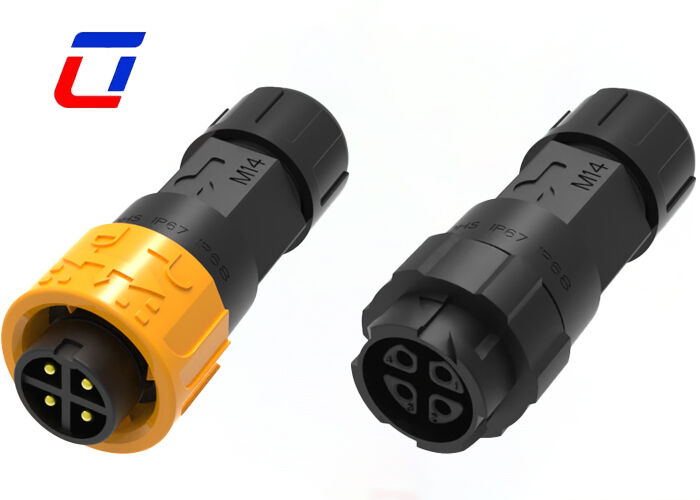

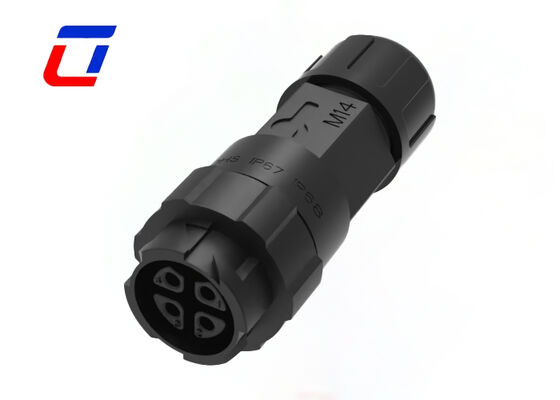

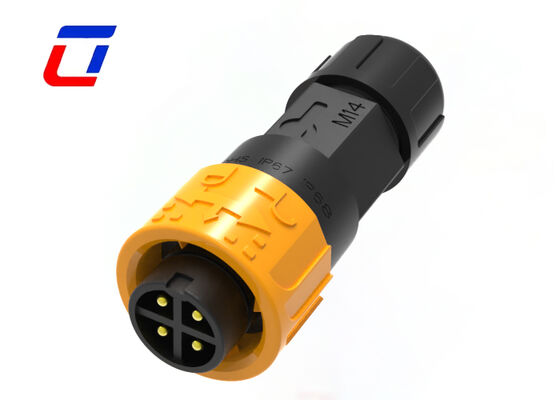

4 Pin LED Waterproof Connector , M16 10A PA66 Push Locking Wire To Wire Connectors
Description of Industrial Waterproof Circular Connector
Main Feature
| Electrical Parameters | |
| Number of Poles | 4Pin waterproof connector |
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
Production Dimension
More Technical Details
FAQ
Q1:Can I get a free sample before placing a bulk order?
A1:We offer free samples for standard models, but the shipping cost is at your expense. For customized samples, a small fee will apply and can be deducted from the formal order later.
Q2:Do you support product customization?
A2: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
Q3:Can I pay after receiving the goods?
A3: For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.
