産業用防水コネクタのプロのサプライヤー
セールス＆サポート:
 |
| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs |
| モデル番号: | M16 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 高品質の輸出カートン |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T、D/A、D/P、マネーグラム、L/C |
| 供給の能力: | 毎月100000ペア |
| ピンの数: | 2ピン | 現在: | 最大10Aパワーのために |
|---|---|---|---|
| 定格電圧: | 300V | 防水定格: | IP67 |
| 難燃性等級: | UL94-V0 | ケーブルゲージ: | 20-18AWG |
| ハイライト: | 2 pin waterproof circular connector,M16 power connector 10A 300V,waterproof male female plug socket |
||

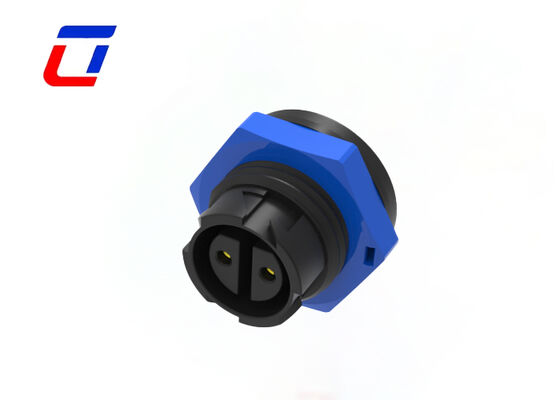

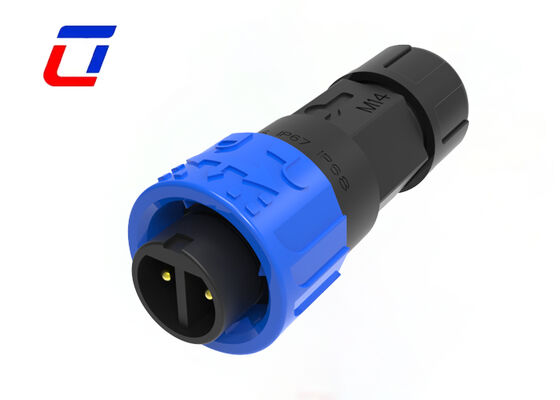

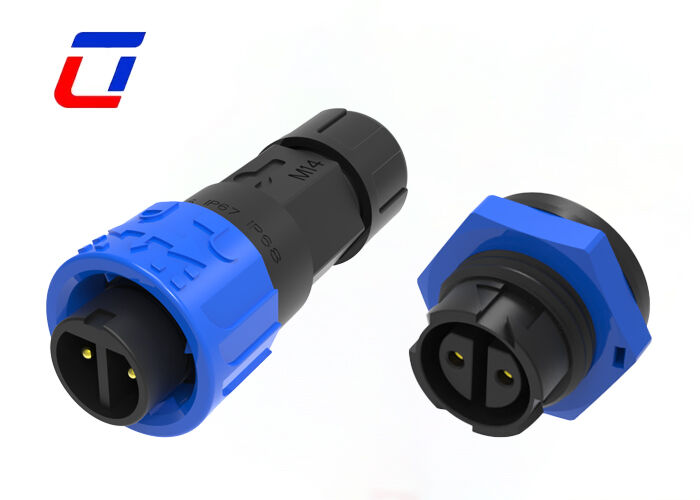

2 Pin Circular Power Connector M16 10A 300V Waterproof Male Female Plug Socket
Description of Industrial Waterproof Circular Connector
Main Feature
| Electrical Parameters | |
| Number of Poles | 2Pin waterproof connector |
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
Production Dimension
More Technical Details
FAQ
Q1:How do I place an order? What is the process?
A1:The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed;
3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
Q2:Are your products certified? What certifications do you have?
A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3:What shipping methods do you offer? How long is the delivery time?
A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
