産業用防水コネクタのプロのサプライヤー
セールス＆サポート:
 |
| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs |
| モデル番号: | M16 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 高品質の輸出カートン |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T、D/A、D/P、マネーグラム、L/C |
| 供給の能力: | 毎月100000ペア |
| ピンの数: | 3ピン | 現在: | 最大10A |
|---|---|---|---|
| 定格電圧: | 300V | 防水定格: | IP67 |
| 色: | 赤青白黒黄 | 直径範囲: | MAX9.00mm |
| ハイライト: | M16 waterproof circular connector,3 pin male to female connector,industrial automation power connector |
||

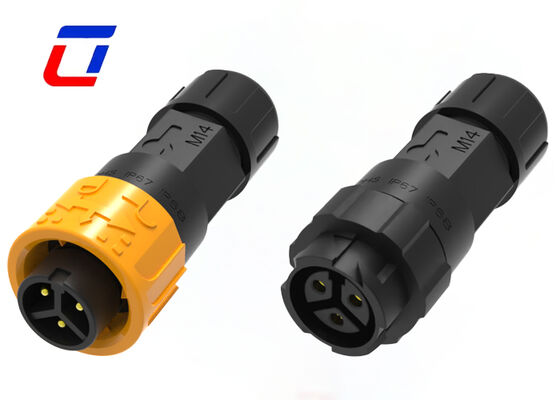

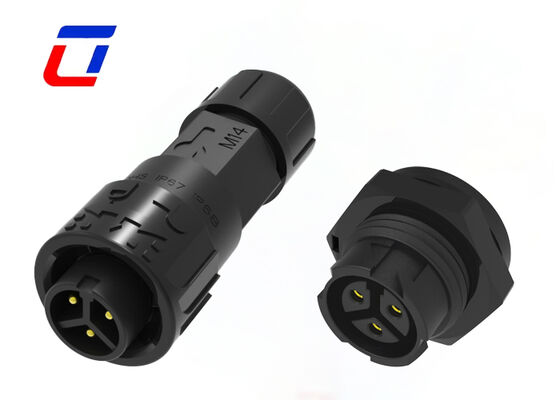

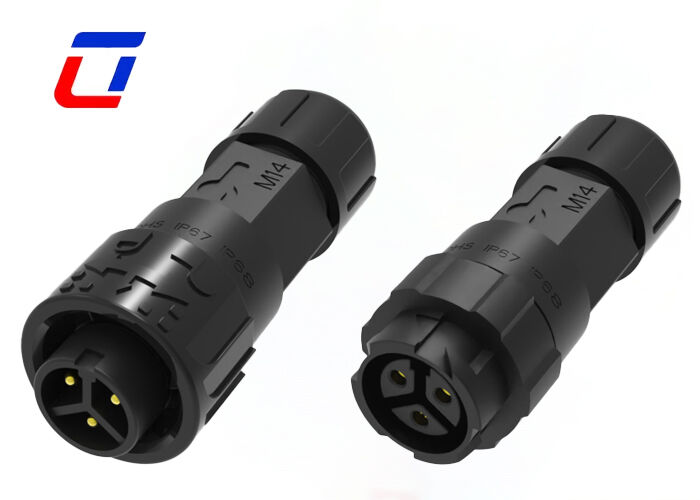

Quick Release M16 3Pin Waterproof Circular Connector.
Description of Industrial Waterproof Circular Connector
Main Feature
| Electrical Parameters | |
| Number of Poles | 3Pin waterproof connector |
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
Production Dimension
More Technical Details
FAQ
Q1:Who is responsible for customs clearance? Do you provide necessary documents?
A1:We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
Q2:Can I pay after receiving the goods?
A2: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
Q3:How to track my shipment?
A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
コンタクトパーソン: Miss. Gina
電話番号: +86 075523019434
