| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1プラスチック袋2カートン3顧客の要求に応じて |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T、D/P、L/C、D/A、、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100000ペア モントリー |
| 性別: | 男性から女性へ | 色: | 白青赤黒黄 |
|---|---|---|---|
| 材料: | PA66 および真鍮錫メッキ | 電流定格: | 20A |
| 定格電圧: | 300V | 接触の直径: | 2.4mm |
| ハイライト: | 3 pin waterproof wire connector,M19 high voltage connector,20A 300V waterproof plug |
||

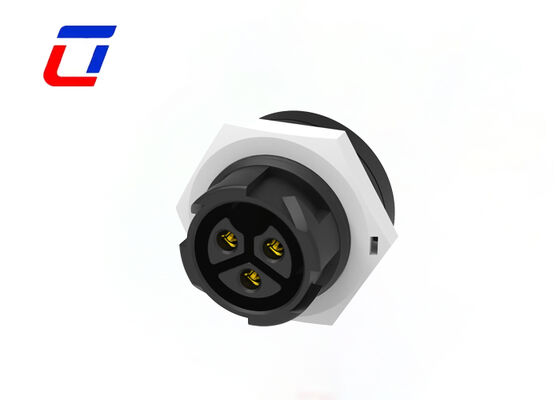

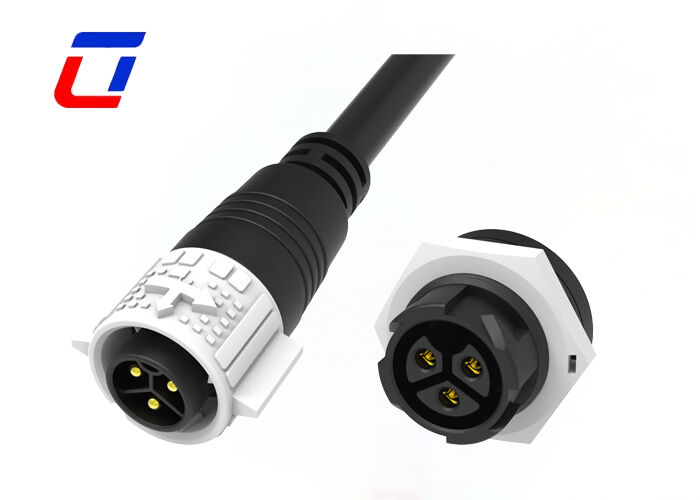

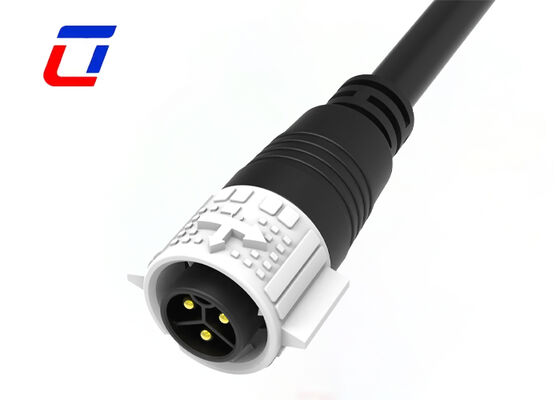

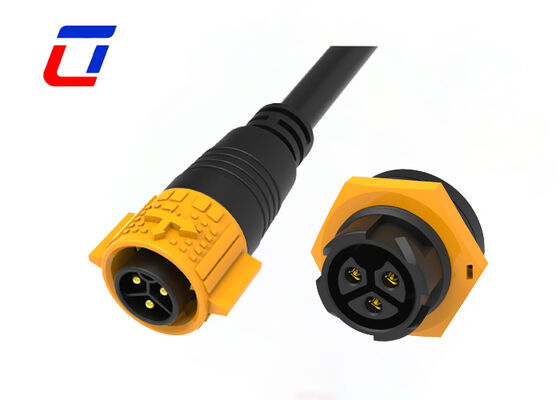

M19 3 Pin 300V Waterproof Plug Socket Connector Quick Lock
Main Features
Quick Description
| Electrical Parameters | |
| Number of Poles | 3 pin |
| Current Rating | 20A max. |
| Voltage Rating | 300VAC max5 |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: What shipping methods do you offer? How long is the delivery time?
A:We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.
2. Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
3. Q: When you ship my order?
A:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.
4. Q: What payment methods do you accept?
A:We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
