| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1プラスチック袋2カートン3顧客の要求に応じて |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T、D/P、L/C、D/A、、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100000ペア モントリー |
| 定格電圧: | 300V | 電流定格: | 15+5A |
|---|---|---|---|
| コネクタの種類: | クイックコネクタ | ピン: | 3+4ピン |
| 材料: | ナイロン | 保護レベル: | IP67 |
| ハイライト: | M19 waterproof quick disconnect connector,3+4 pin waterproof LED connector,300V waterproof OEM connector |
||

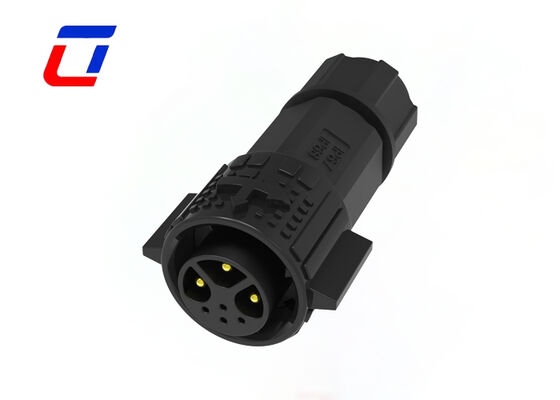

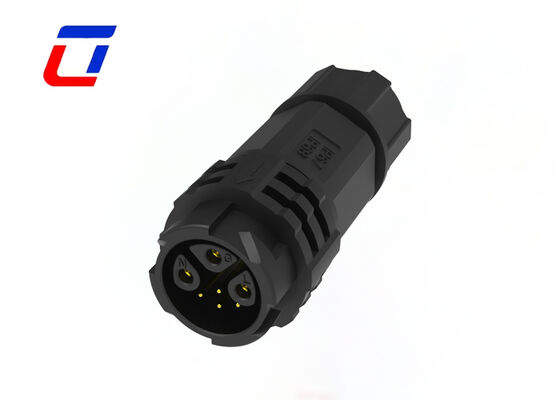

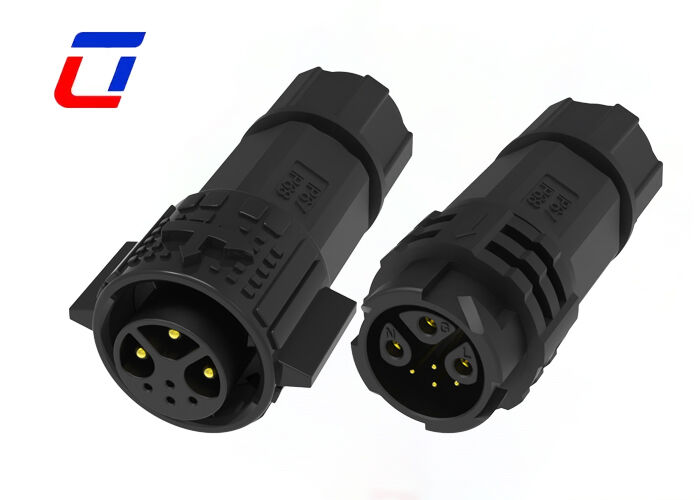

Outdoor Waterproof Connector M19 3+4 Pin IP67 Waterproof Connector Wire To Wire
IP67 deep waterproof and dustproof protection with double sealing gaskets and tight interface design. Can be immersed in 1-meter-deep water for 30 minutes while maintaining stable performance. Ideal for harsh outdoor environments including heavy rain, sand, dust, and condensation.
Wire-to-wire exclusive design with high-conductivity materials for minimal contact resistance and reduced power/signal transmission loss. Enhanced connection points provide excellent anti-pulling and anti-vibration performance.
Foolproof installation with clear docking guide marks and manual connection/locking capabilities. No professional tools required, reducing construction and maintenance costs.
| Electrical Parameters | |
|---|---|
| Number of Poles | 3+4Pin |
| Current Rating | 15A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max. Cable Cross Section Area | 0.5mm² ~ 2.5mm² |
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
A: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
