| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱 |
| 受渡し時間: | 5~8 営業日 |
| 支払条件: | T/T、D/A、D/P、マネーグラム、L/C |
| 供給の能力: | 毎月100000ペア |
| ピンの数: | 2ピン | 現在: | 20A |
|---|---|---|---|
| コネクタの種類: | セルフロックオス→メス | 材料: | PA66&銅合金 |
| 定格電圧: | 300V | 難燃性等級: | UL94-V0 |
| ハイライト: | PA66 M19 waterproof power connector,2 pin industrial power connector,20A waterproof electrical connector |
||

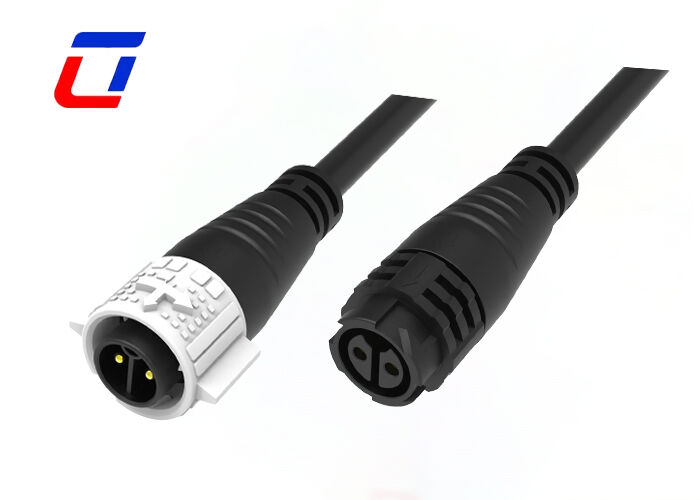

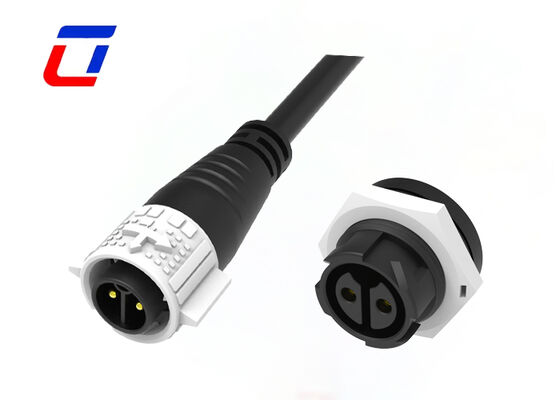

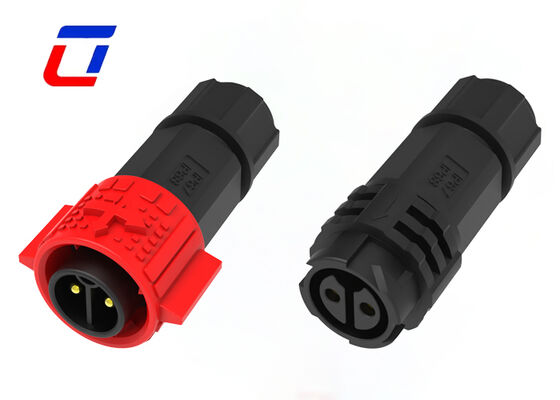

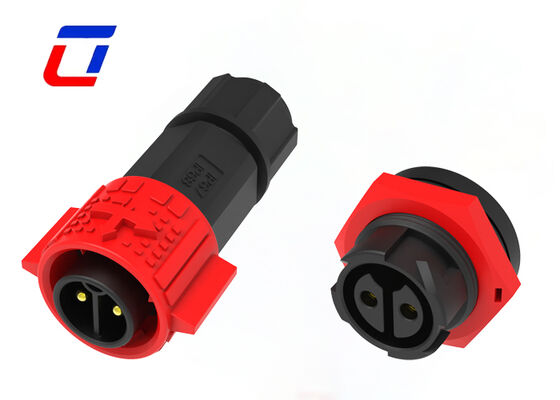

M19 2Pin 20A Push Lock Power Waterproof Circular Connectors
Main Features
Quick Details of 2Pin Connector Male female
| Product Type Features | |
| Connector System | Cable-to-Cable/Board |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, socket |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Electrical Characteristics | |
| Number of Poles | 2 |
| Current Rating | 20A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Body Features | |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Usage Conditions | |
| Operating Temperature Range (°C) | -40 ~105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Operation/Application | |
| Durability Rating (Cycles) | 250, 251 |
| Industry Standards | |
| UL Flammability Rating | UL 94V-0 |
Application industries
More Technical Details
FAQ
Q1:How can I get samples?
A1:It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
Q2:Are your products certified? What certifications do you have?
A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3:Is there a discount for large-quantity orders?
A3: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
