| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs |
| モデル番号: | M25 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱 |
| 受渡し時間: | 5~8 営業日 |
| 支払条件: | T/T、D/A、D/P、マネーグラム、L/C |
| 供給の能力: | 毎月100000ペア |
| ピンの数: | 3+3PIN | 防水定格: | IP67 |
|---|---|---|---|
| 現在: | 15A+5A | 温度範囲: | -40℃～+105℃ |
| 材料: | PA66 | 難燃性等級: | UL94-V0 |

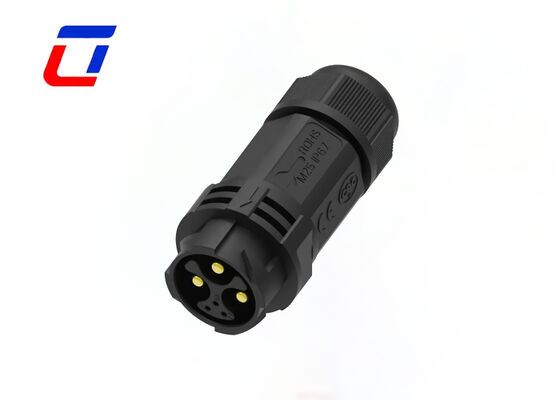

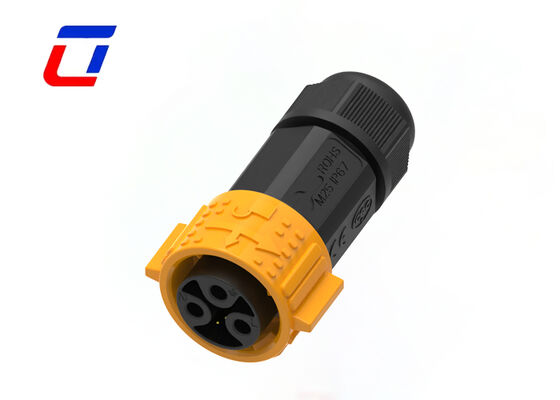

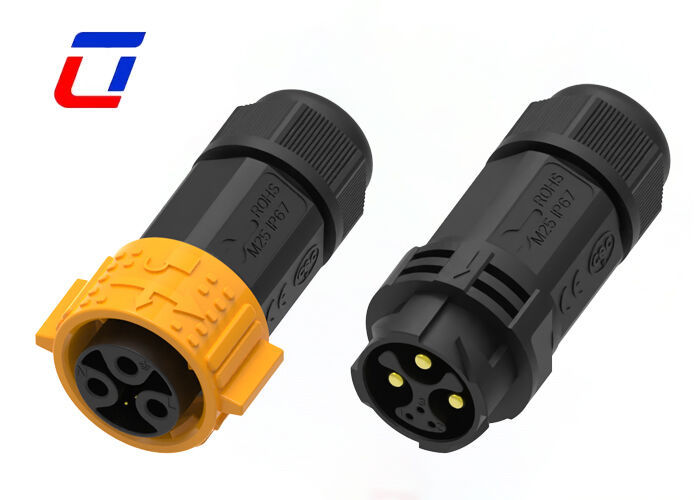

| ハイライト: | 3+3 pin M25 waterproof connector,PA66 plastic wire to wire connector,M25 signal and power plug |
||
| Feature Category | Specification |
|---|---|
| Connector System | Cable-to-Cable |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, Receptacle |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Number of Positions | 3+3 |
| Number of Signal Positions | 3 |
| Contacts Preloaded | Yes |
| Operating Voltage (VAC) | 600V max. |
| Operating Voltage (VDC) | 600V max. |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Contact Current Rating (Max) | 15A + 5A max. |
| Circular Connector Contact Type | Pin-Socket |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Wire Size (AWG) | 20AWG, 18AWG, 16AWG, 14AWG |
| Operating Temperature Range | -40°C to 105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| UL Flammability Rating | UL 94V-0 |
