| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1.ビニール袋;2.カートン;3.顧客の要件に従って |
| 受渡し時間: | 3~6営業日 |
| 支払条件: | T/T、D/P、L/C、D/A、、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 月間100,000ペア |
| ピン: | 12ピン | 定格電圧: | 300V |
|---|---|---|---|
| 材料: | ナイロン | 色: | 白青赤黒黄 |
| 難燃性等級: | UL94-V0 | 企業分野: | スマートホーム |
| ハイライト: | M19 300V waterproof cable connector,12 pin self locking outdoor connector,waterproof plug socket with warranty |
||

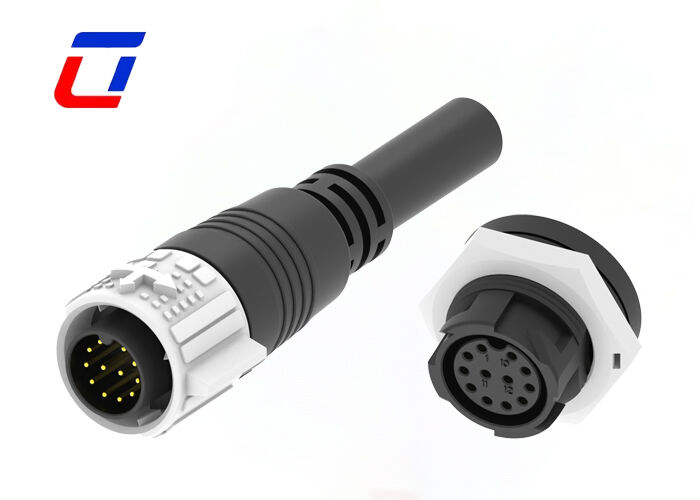

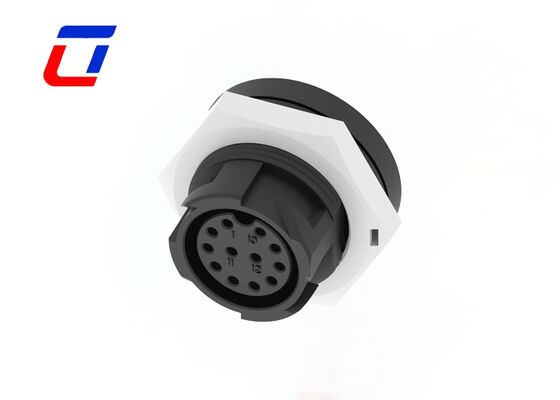

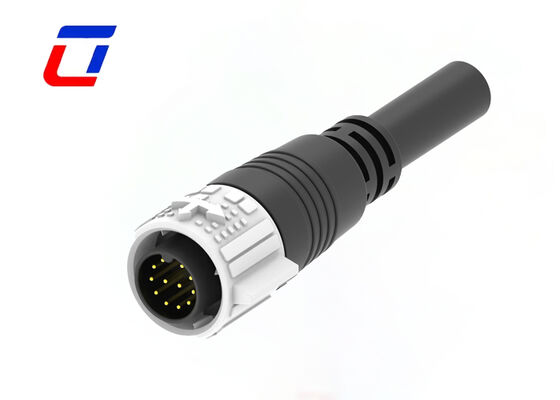

Engineered exclusively for high-reliability operation in wet, harsh environments, this circular connector series delivers uncompromised performance with its IP67 dust and water ingress protection rating. Equipped with a corrosion-resistant housing and a precise 12-pin configuration, it guarantees stable, uninterrupted transmission of both power and signal.
Designed for tool-free, effortless mating, its rugged construction ensures long-lasting durability across industrial equipment, outdoor electronics, lighting systems, and marine devices. The intuitive push-lock mechanism enables automatic locking with simple one-second insertion, eliminating accidental disconnections in vibration-prone environments.
The integrated power-and-signal design addresses limitations of traditional separate connectors, offering compact, all-in-one connectivity ideal for space-constrained installations.
| Number of Poles | 12 Pin |
|---|---|
| Current Rating | 5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Contact Resistance | 10 mΩ max |
|---|---|
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Voltage Rating | 300VAC max |
|---|---|
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max. Cable Cross Section Area | 0.5mm² ~ 2.5mm² |
