| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1.ビニール袋;2.カートン;3.顧客の要件に従って |
| 受渡し時間: | 3~6営業日 |
| 支払条件: | T/T、D/P、L/C、D/A、、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 月間100,000ペア |
| ピン: | 8ピン | コネクタの種類: | クイックコネクタ |
|---|---|---|---|
| 定格電圧: | 300V | 動作温度: | -40℃～+105℃ |
| 難燃性評価: | UL 94-V0 | 色: | 、白い青い、緑 |
| ハイライト: | IP67 waterproof cable connector,8 pin outdoor cable connector,M19 waterproof male female connector |
||

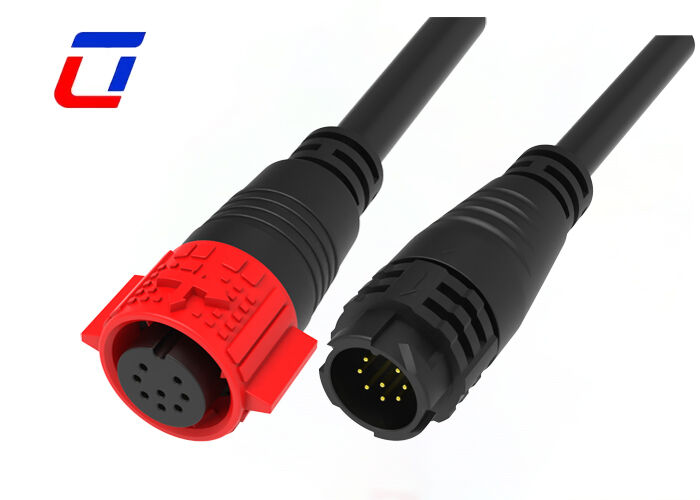

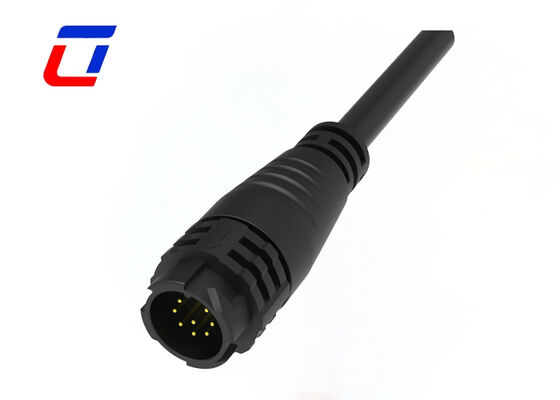

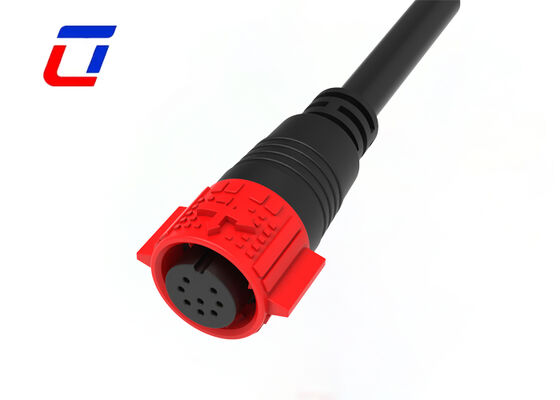

This M19 8-pin circular connector is specifically engineered for outdoor data transfer applications, featuring 300V voltage compatibility, IP67 protection rating, and a quick-release mechanism. The expanded 8-pin design supports multi-channel synchronous data transmission, while the male-female cable connection includes a one-click quick-release system for easy installation and maintenance.
Constructed with high-strength plastic housing for enhanced durability against outdoor environmental corrosion, this connector delivers reliable performance in demanding conditions.
| Number of Poles | 8 Pin |
| Current Rating | 5A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1000VAC @ 60 seconds |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C to +105°C |
| IP Class | IP67 (1m / 30min when mated) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Min Wire Size OD | 3.0mm - 6.0mm |
| Max Wire Size OD | 8.0mm - 10.0mm |
| Max Cable Cross Section Area | 0.5mm² - 1.5mm² |
