| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱 |
| 受渡し時間: | 5~8 営業日 |
| 支払条件: | T/T、D/A、D/P、マネーグラム、L/C |
| 供給の能力: | 毎月100000ペア |
| ピンの数: | 3+9ピン | 現在: | 15A+5A |
|---|---|---|---|
| 防水定格: | IP67 | 温度範囲: | -40℃～+105℃ |
| 材料: | ナイロン | 難燃性等級: | UL94-V0 |
| ハイライト: | M19 circular connector 12 pin,TUV certified waterproof plug,3+9 power signal connector |
||

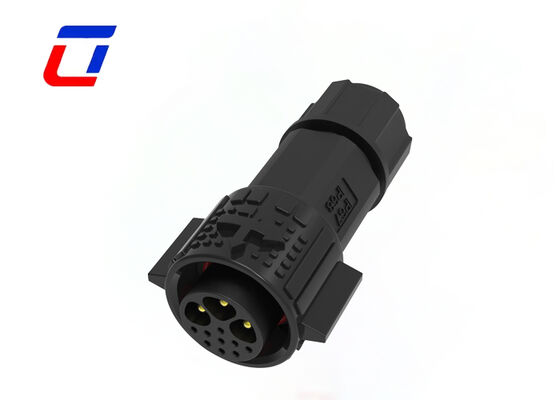

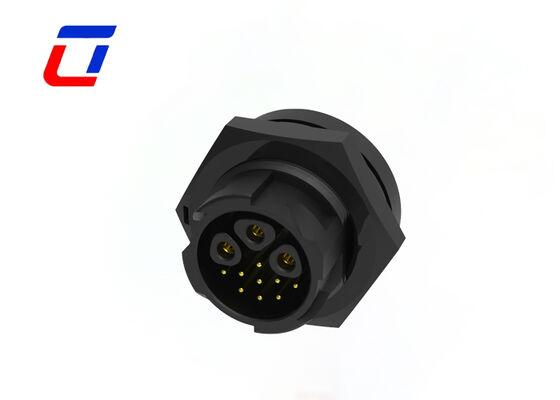

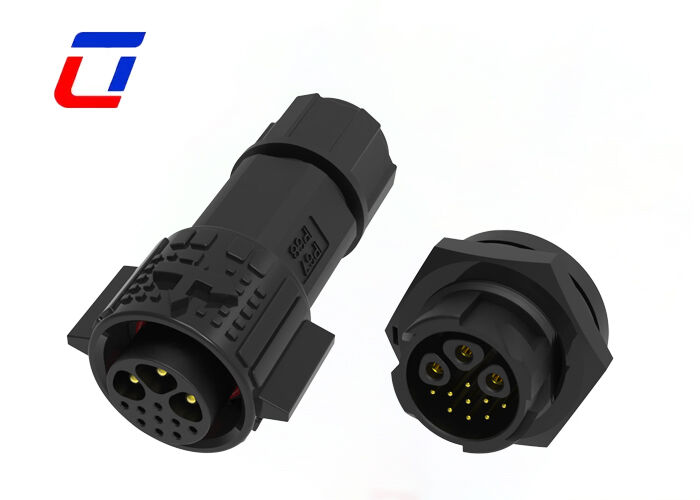

This M19 Circular Connector features a 12-pin (3+9) precision configuration with TUV certification, integrating both power and signal transmission functions. The 3-pin channel provides stable power supply while the 9-pin channel handles multi-group signal transmission, enabling separated and coordinated operation for complex working conditions.
Built with an M19 standard circular structure, it ensures precise and firm male-female docking, stable contact impedance, and excellent vibration resistance and weatherability. Made from high-durability materials with advanced sealing design, it's suitable for outdoor and industrial humid environments, providing reliable connections for various equipment applications.
| Connector System | Cable-to-Board |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, Receptacle |
| Shell Material | PA66 |
| Number of Poles | 3+9 |
| Current Rating | 15A+5A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s |
| Operating Temperature Range | -40°C to 105°C |
| IP Protection Rating | IP67 |
| Durability Rating | 250-251 cycles |
| UL Flammability Rating | UL 94V-0 |
