Name: M16 High Current Waterproof Connector IP67 2 Pin Quick Connector Automotive
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

ホーム製品 ip67 防水接続器

M16 High Current Waterproof Connector IP67 2 Pin Quick Connector Automotive

商品の詳細:

起源の場所:	中国
ブランド名:	Ulinkcon
証明:	CE/Rohs/TUV/UL
モデル番号:	M16

お支払配送条件:

最小注文数量:	交渉
価格:	交渉可能
パッケージの詳細:	高品質の輸出カートン
受渡し時間:	3~6 営業日
支払条件:	T/T、D/A、D/P、マネーグラム、L/C
供給の能力:	毎月100000ペア

連絡先

詳細製品概要

ピンの数:	2ピン	現在:	最大10Aパワーのために
定格電圧:	300V	防水定格:	IP67
難燃性等級:	UL94-V0	色:	青/緑/黄/赤
ハイライト:	M19 waterproof connector IP67 , 2 pin quick connector automotive , high current waterproof connector

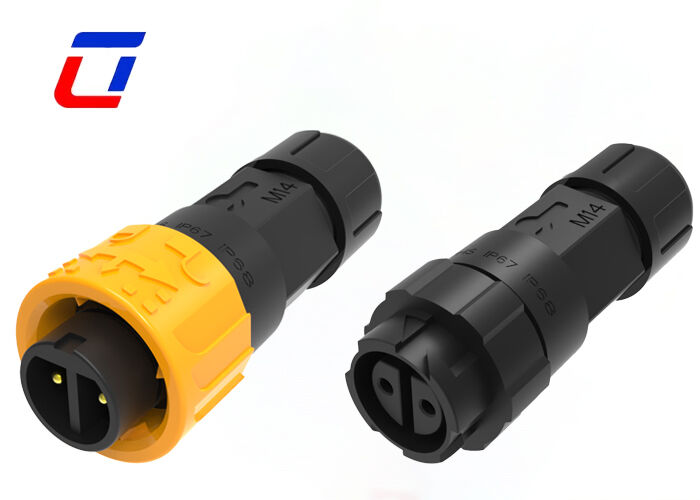

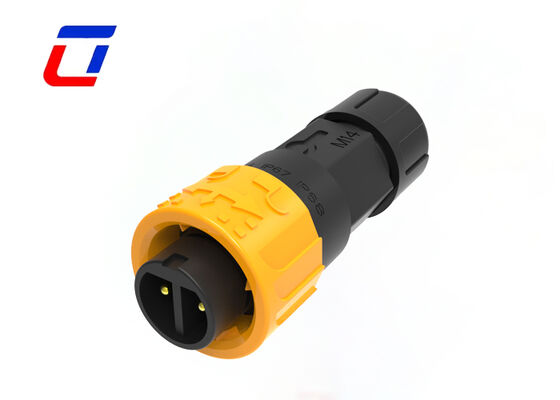

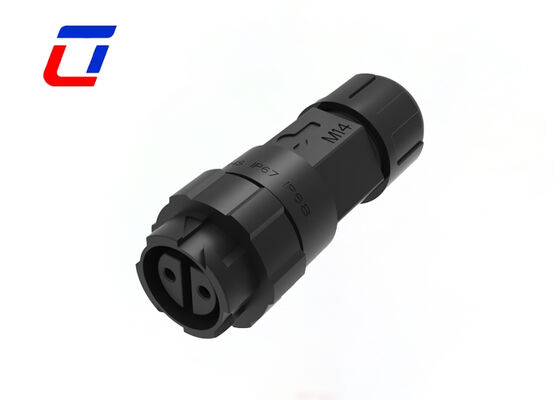

M16 High Current Waterproof Connector IP67 2 Pin Quick Connector Automotive

Product Overview

2 Pin Circular Power Connector M16 300V Waterproof Male Female Connector designed for reliable cable-to-cable connections in demanding industrial environments.

Key Features

Push lock quick easy release system for efficient operation
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field-installable variants for both wire-to-wire and wire-to-board configurations
High-current-rated waterproof connector supporting up to 10A continuous operation
Cable assembly services with customization options available
OEM/ODM partnerships warmly accepted

Connection Specifications

Adopting a 2-pin male-female docking design with M16 interface standard, featuring precise pin alignment and smooth plugging operation. Engineered for 300V rated voltage scenarios with excellent connection gap control for stable power transmission.

Waterproof Performance

Constructed with high-standard waterproof protection including integrated sealing process and customized waterproof rubber rings. Effectively resists rain, sand, dust, oil stains, and humid environments while reducing short circuit and poor contact risks.

Electrical Parameters

Parameter	Specification
Number of Poles	2Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines and inkjet systems
Inventory product coding equipment
Industrial inkjet equipment
Solar systems
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimension

Technical Details

Frequently Asked Questions

How can I get samples?

We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market requirements.

What payment methods do you accept?

We support mainstream international payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, our standard terms are 30% down payment with 70% balance due before shipment.
