Name: M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

ホーム製品防水電源コネクタ

M16 4 Pin IP67 Power Connectors 300V Waterproof Low Voltage Wire Connectors

商品の詳細:

起源の場所:	中国
ブランド名:	Ulinkcon
証明:	CE/Rohs
モデル番号:	M16

お支払配送条件:

最小注文数量:	交渉
価格:	交渉可能
パッケージの詳細:	高品質の輸出カートン
受渡し時間:	3~6 営業日
支払条件:	T/T、D/A、D/P、マネーグラム、L/C
供給の能力:	毎月100000ペア

連絡先

詳細製品概要

コンタクト数:	4ピン	現在:	最大10A
定格電圧:	300V	防水レベル:	IP67
難燃性等級:	UL94-V0	温度:	-40~105°C
ハイライト:	M19 4 pin waterproof power connector , IP67 low voltage wire connector , 300V waterproof power connector

M16 4 Pin IP67 Power Connectors

300V Waterproof Low Voltage Wire Connectors

4 Pin LED Waterproof Connector

M16 10A PA66 Push Locking Wire To Wire Connectors

Industrial Waterproof Circular Connector

Core Parameters

Following the M16 interface standard, this 4-pin connector features a 10A rated current and is specifically designed for power transmission applications. TUV certified for compliance with relevant safety standards.

Protection Performance

Excellent waterproof and dustproof capabilities effectively resist dust intrusion and water exposure, adapting to power connection needs in various complex working conditions.

Structural Advantages

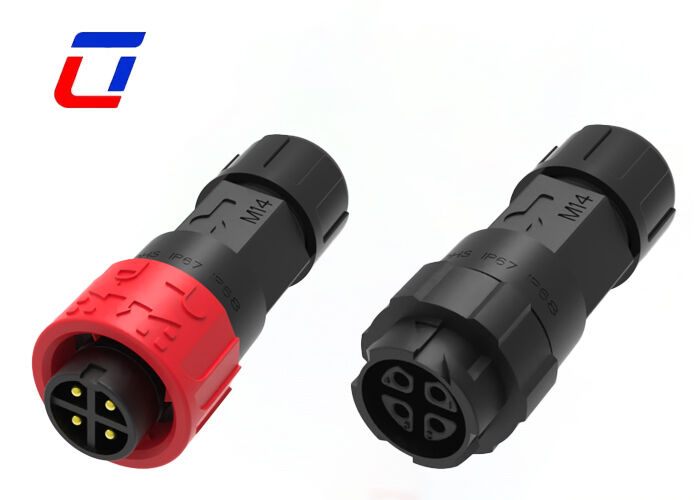

Male and female plugs feature precise alignment for smooth insertion and extraction. The connection is tight and firm with excellent anti-vibration and anti-drop performance, ensuring stable power transmission.

Application Scenarios

Ideal for industrial control power supplies, automation equipment, instrument power connections, and other core fields requiring reliable connection support for stable power supply.

Main Features

Push lock quick release system for hassle-free operation
Multiple core configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly versions: wire to wire / wire to board
High current rated waterproof connector suitable for 10A continuous operation
Cable assembly service supported with customization options
OEM/ODM services welcome

Electrical Parameters

Number of Poles	4Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Applications
Product coding machines
Inventory product coding
Inkjet systems
Solar Systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: How many materials can you provide?

A1: We offer various materials for connectors and cables. Connectors typically use PVC/Nylon materials, while cables use PVC/Rubber/Silicone materials. We can also select materials according to your specific requirements.

Q2: Do you support product customization?

A2: Yes, we offer customization for specifications, colors, and packaging. Please provide your detailed requirements, and we will provide a quote with a sample confirmation process.

Q3: Can I pay after receiving the goods?

A3: For first-time cooperation, advance payment is required to ensure smooth production. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
