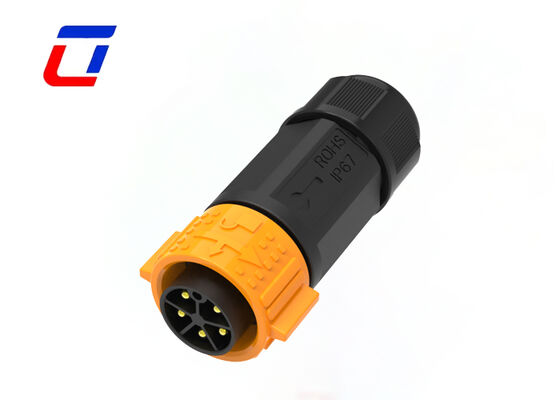

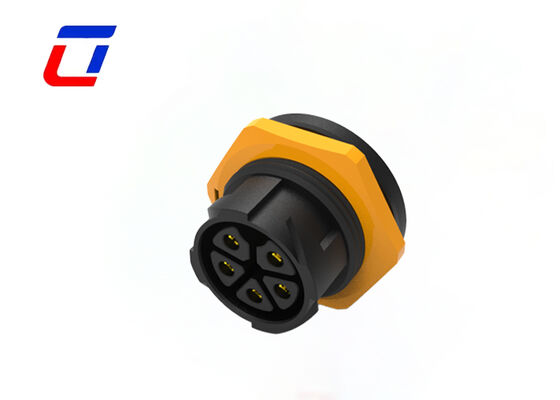

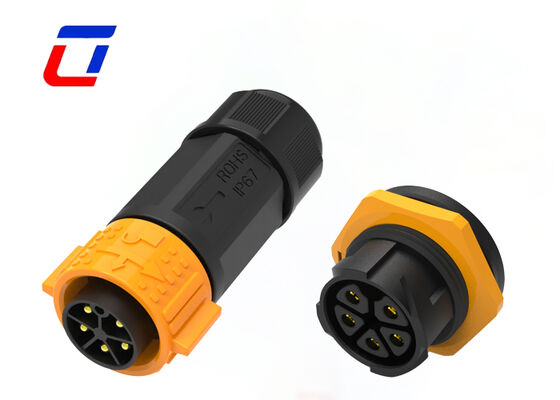

M25 5 Pin Panel Mount Connector Quick Nylon Electrical Plug Socket For Solar System
5 Pin Industrial Waterproof Power 300V M25 Push Lock Male To Female Connector
Main Features
- Push lock quick release system
- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
- Field assembly version: both wire to wire and wire to board options
- High current rated waterproof connector good choice up to 50A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Product Overview
Developed exclusively for solar systems, the 50A M25 5-pin panel mount nylon quick-connect connector features high-current adaptation, outdoor weather resistance and easy installation as its core advantages, making it a preferred accessory for power connection in photovoltaic projects. The M25 standard specification combined with a 5-pin layout precisely matches the power transmission needs between various devices in solar systems.
The panel mount design can be firmly embedded in equipment panels, making wiring more regular and adapting to various photovoltaic scenarios including household, industrial and commercial applications. The nylon housing is specially designed for outdoor photovoltaic environments with excellent UV resistance, anti-aging and corrosion resistance.
Built to withstand harsh working conditions including long-term outdoor exposure, day-night temperature differences, rain, snow and sand dust, its service life is highly matched with photovoltaic modules. The 50A high-current carrying capacity adapts to the power transmission needs of solar systems, while the quick-connect structure enables fast plugging, pulling and locking by hand without professional tools.
The connector features built-in high-conductivity alloy conductors with anti-oxidation treatment for stable conductivity and low loss, ensuring efficient transmission of photovoltaic power and helping to improve overall system power generation efficiency. With professional waterproof sealing structure achieving IP67 rating, it effectively blocks outdoor moisture and rainwater intrusion, eliminating potential safety hazards.
Electrical Parameters
| Number of Poles |
5Pin waterproof connector |
| Current Rating |
50A max |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s |
Application Industries
- Communications Application
- Product coding machines
- Inventory product coding
- Inkjet systems
- Solar System
- Industrial inkjet equipment
- Electric power equipment
- Laboratory forensic & pathology equipment
- Communications equipment
- Heavy machinery
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max Cable Cross Section Area |
0.5mm² ~ 6.0mm² |
Production Dimension
More Technical Details
Frequently Asked Questions
Q1: What is rated voltage?
Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.
Q2: Do you support product customization?
Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
Q3: How to choose the suitable connector?
You need to follow these steps:
- Confirm Current Rating and Number of Contacts
- Confirm Assembly style need to pre-cable or not. If needed, then confirm the next
- Confirm Cable gauge
- Confirm Cable Length and Material
