| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs |
| モデル番号: | M16 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 高品質の輸出カートン |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T、D/A、D/P、マネーグラム、L/C |
| 供給の能力: | 毎月100000ペア |
| コンタクト数: | 4ピン | 現在: | 最大10A |
|---|---|---|---|
| 定格電圧: | 300V | 防水レベル: | IP67 |
| 銅針の材質: | 銅合金 | 難燃性等級: | UL94-V0 |
| ハイライト: | M16 waterproof cable connector 300V,heavy duty power cable connector,4 pin waterproof connector commercial |
||

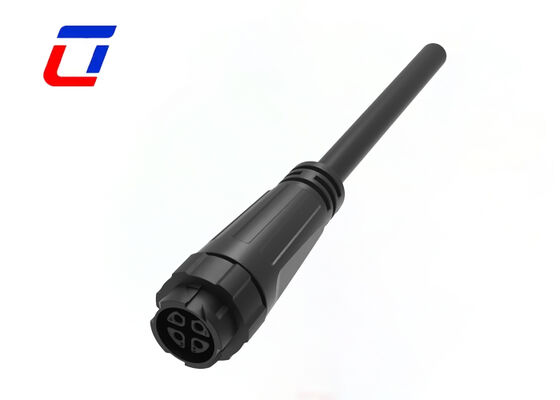

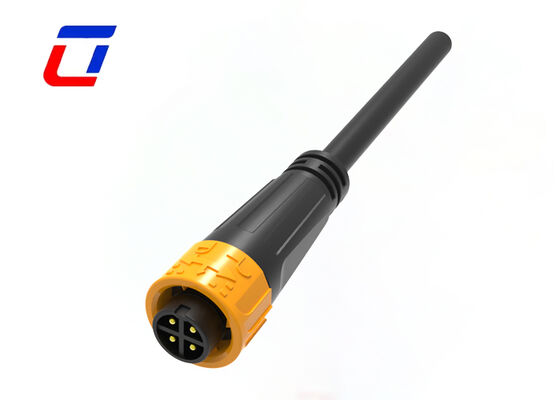

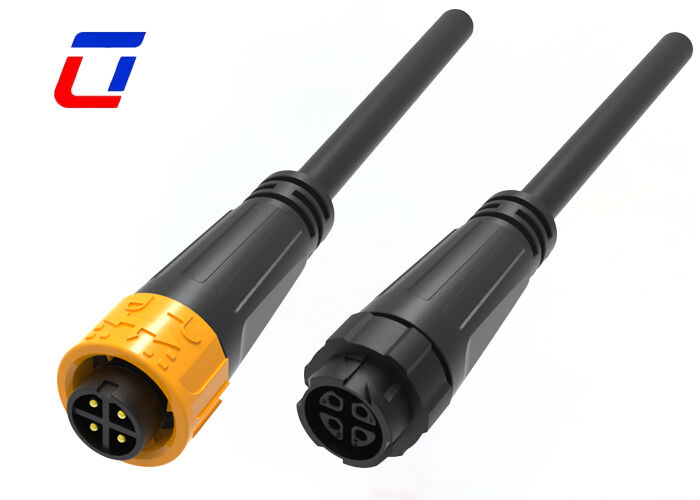

4 Pin Waterproof Connector, M16 10A PA66 Push Locking Wire Board Connectors This 10A M16 4-pin electrical connector features a push-locking design, ideal for outdoor wire-to-board power connections. It combines convenience and high protection, making it the ideal choice for outdoor equipment power supply and stable connection for various low-to-medium power outdoor electronic devices.10A M16 4 Pin Electrical Connectors Push Locking Outdoor Wire To Wire Connector
Product Overview
Compliant with standard specifications, it has a 10A rated current, M16 standard interface, and 4-pin precise layout, perfectly matching wire-to-board connection requirements. It ensures stable docking between wires and circuit boards, focusing on reliable power transmission for outdoor equipment installation.
Push-locking is its core advantage: easy one-press locking, tool-free and efficient plugging and unplugging. The connection is firm, effectively resisting outdoor vibration and slight pulling to prevent accidental disconnection and ensure stability. It also offers excellent outdoor protection with professional sealing structure, blocking rain, sand, dust and moisture, suitable for complex harsh outdoor environments.
Main Features
Electrical Parameters
Number of Poles
4Pin waterproof connector
Current Rating
10A max
Voltage Rating
300VAC max
Durability Voltage
1500VAC @ 60 s
Technical Parameters
Contact Resistance
10 mΩ max
Insulation Structure
500 MΩ at 500VDC
Operating Temperature
-40°C ~ +105°C
IP Class
IP67 (1m / 30min)
Mold Material
PA66
Contact/Terminal Material
Gold Plated Brass
Seal Material
Silicone
Application Industries
Production Dimension
More Technical Details
Frequently Asked Questions
Q1: How many materials you can provide?
A1: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
Q2: Do you support product customization?
A2: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
Q3: Can I pay after receiving the goods?
A3: For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.
