| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs |
| モデル番号: | M16 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 高品質の輸出カートン |
| 受渡し時間: | 3~6 営業日 |
| 支払条件: | T/T、D/A、D/P、マネーグラム、L/C |
| 供給の能力: | 毎月100000ペア |
| ピン数: | 3ピン | 現在: | 最大10A |
|---|---|---|---|
| 定格電圧: | 300V | 防水定格: | IP67 |
| 色: | 赤青白黒黄 | 企業分野: | 産業オートメーション / 新エネルギー / 建設工学 |
| 難燃性等級: | UL94-V0 | ||
| ハイライト: | M16 waterproof power connector 3 pin,wire to wire connector 300V,Rohs waterproof cable connector |
||

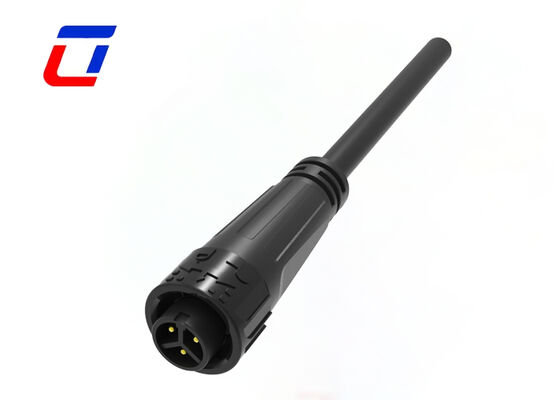

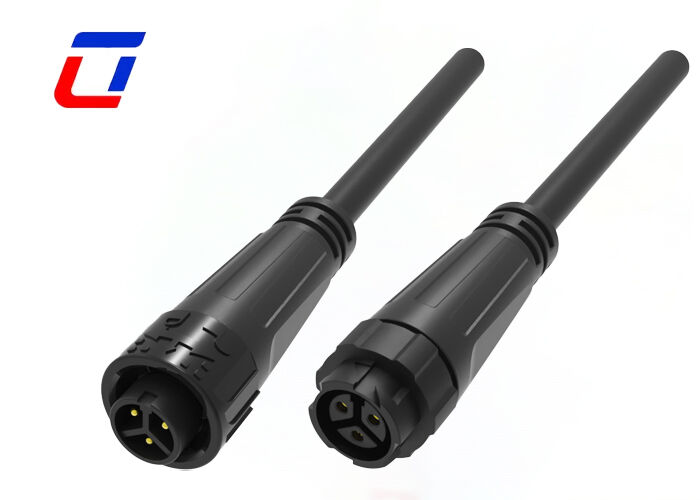

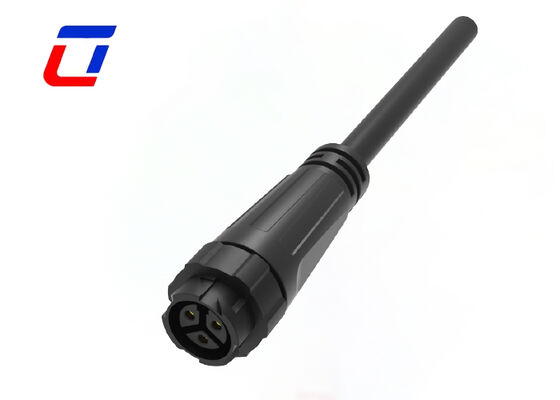

Wire‑to‑Wire Direct Connection Design
Specially designed for wire‑to‑wire power connection, enabling fast and stable docking between two cables without PCB or panel, greatly improving wiring efficiency.
IP67 Waterproof & Dustproof Protection
With integrated sealed structure, it reaches IP67 protection grade, effectively isolating moisture, rain, dust and oil, suitable for outdoor and harsh industrial environments.
3‑Pin Special Power Terminal Configuration
Optimized 3‑pin layout for stable power transmission, with low contact resistance and high conductivity, ensuring safe and reliable power supply for various equipment.
300V Rated Voltage for Wide Application
Rated voltage up to 300V, ideal for low‑voltage power systems, lighting, electrical equipment and industrial control devices.
RoHS Compliant & Environmentally Friendly
Fully meets RoHS environmental standards, free of hazardous substances, safe for industrial and daily use, and eco-friendly.
| Number of Poles | 3Pin waterproof connector |
|---|---|
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s |
| Contact Resistance | 10 mΩ max |
|---|---|
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
There are different materials available for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your specific requirements.
The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
