産業用防水コネクタのプロのサプライヤー
セールス＆サポート:
 |
| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M19 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1.ビニール袋;2.カートン;3.顧客の要件に従って |
| 受渡し時間: | 3~6営業日 |
| 支払条件: | T/T、D/P、L/C、D/A、、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 月間100,000ペア |
| ピン: | 7ピン | 電流定格: | 5A |
|---|---|---|---|
| コネクタの種類: | クイックコネクタ | 定格電圧: | 300V |
| 材料: | ナイロン | 色: | 青 赤い 青 |
| ハイライト: | 300V waterproof M19 connector,7 pin plastic control system connector,IP67 rated male female connector |
||

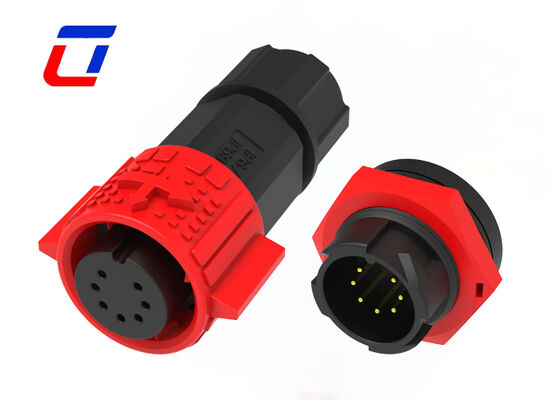

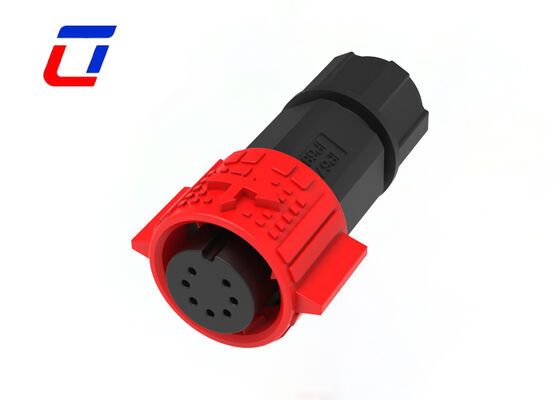

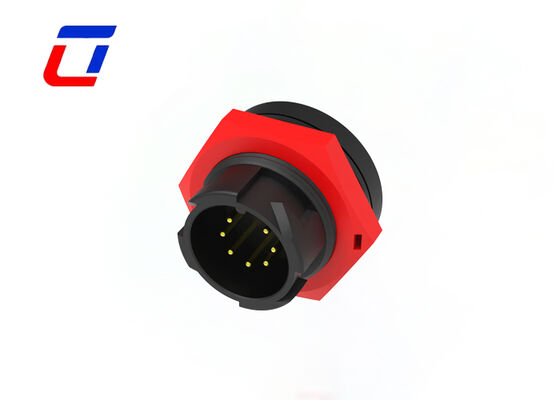

7 Pin Male Female Connector M19 Wire To Board Outdoor Connectors
Quick Description
Main Features
Application industries
| Electrical Parameters | |
| Number of Poles | 7Pin |
| Current Rating | 5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: Can I have custom label?
A: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
3. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
