| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M16 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 1.ビニール袋;2.カートン;3.顧客の要件に従って |
| 受渡し時間: | 3~6営業日 |
| 支払条件: | T/T、D/P、L/C、D/A、、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 月間100,000ペア |
| ピン: | 2+4ピン | 材料: | PA66、UL94-V0 |
|---|---|---|---|
| 防水レベル: | IP67 | 動作温度: | -40℃～+105℃ |
| 接点材質: | 真鍮金メッキ | 特定のアプリケーションシナリオ: | 自動生産ライン |

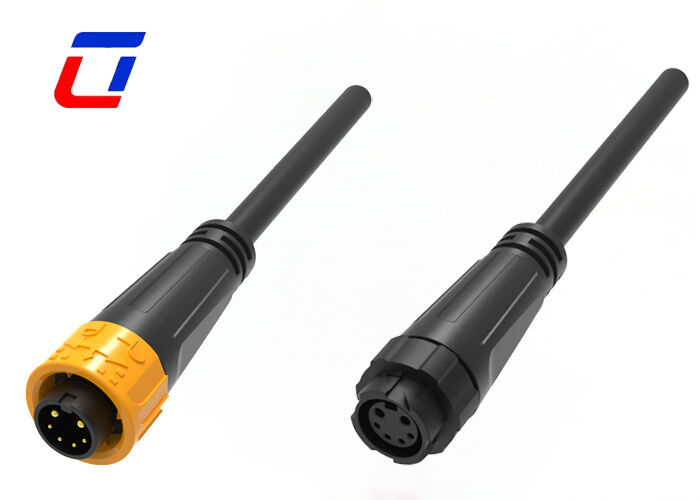

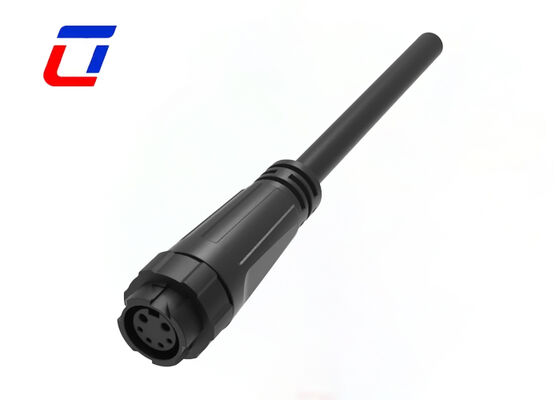

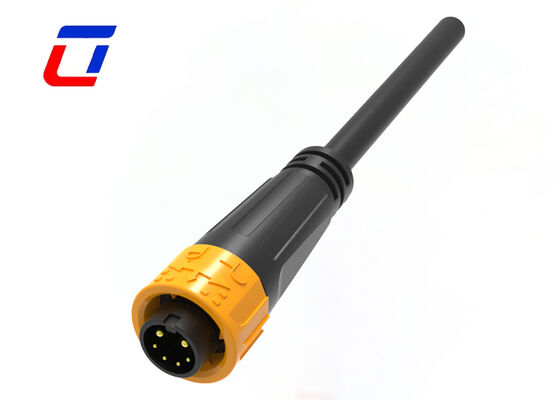

M16 2+4 Pin Wire To Wire Connector ODM Industrial Power And Signal Connectors. PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16.
M16 IP67 Waterproof Connector features a 6-pin functional division design, with 2 pins independently carrying power transmission and 4 pins dedicated to data signal transmission. It realizes synchronous transmission of power and data without additional connectors, suitable for various equipment scenarios requiring simultaneous power supply and data transmission.
IP67 waterproof and dustproof protection can effectively resist heavy rain, sand, and humidity, adapting to complex and harsh environments such as outdoor and industrial areas, ensuring stable power supply and uninterrupted data transmission.
The terminals are made of high-conductivity material with low contact resistance, resulting in low power transmission loss and clear, interference-free data transmission, balancing power supply stability and data transmission accuracy.
M16 standard interface, compatible with conventional outdoor cables, easy to install and quick to plug in and out without complex tools, greatly improving construction and operation efficiency, suitable for industrial control, outdoor monitoring and other equipment.
| Electrical Parameters | |
|---|---|
| Number of Poles | 2+4 pin waterproof connector |
| Current Rating | 15+5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
|---|---|
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
|---|---|
| Voltage Rating | 600VAC max |
| Current Rating | 20A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max. Cable Cross Section Area | 0.5mm² ~ 2.5mm² |
