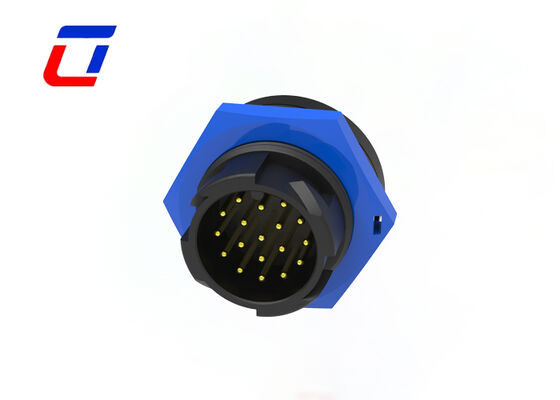

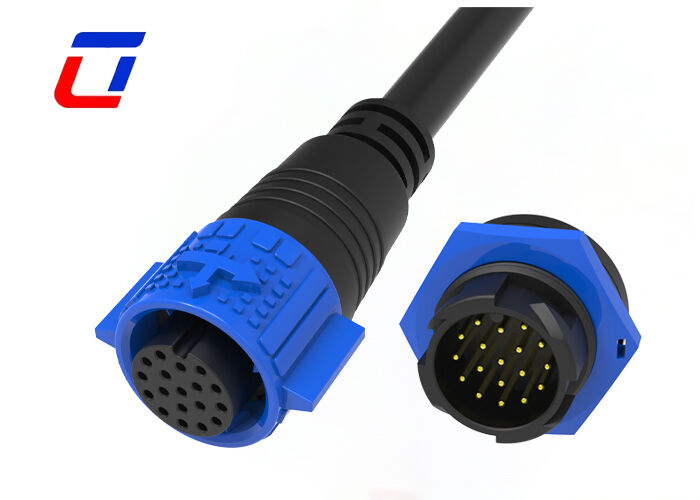

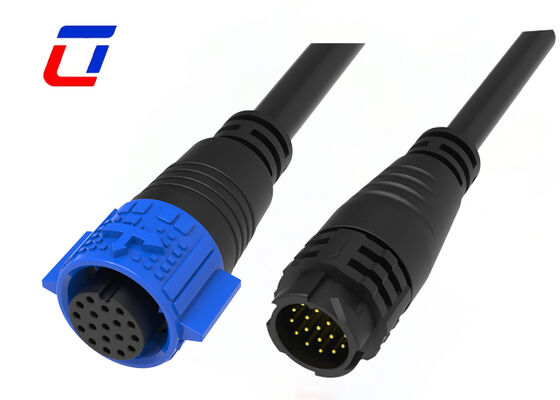

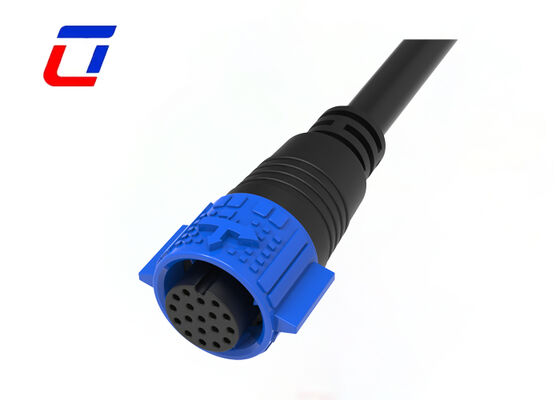

M19 IP67 18 ピン ケーブル コネクタ屋外防水クイック コネクタ通信機器へ

M19 IP67 18 ピン ケーブル コネクタ屋外防水クイック コネクタ通信機器へ

  • M19 IP67 18 ピン ケーブル コネクタ屋外防水クイック コネクタ通信機器へ
  • M19 IP67 18 ピン ケーブル コネクタ屋外防水クイック コネクタ通信機器へ
  • M19 IP67 18 ピン ケーブル コネクタ屋外防水クイック コネクタ通信機器へ
  • M19 IP67 18 ピン ケーブル コネクタ屋外防水クイック コネクタ通信機器へ
M19 IP67 18 ピン ケーブル コネクタ屋外防水クイック コネクタ通信機器へ
商品の詳細:
起源の場所: 中国
ブランド名: Ulinkcon
証明: CE/Rohs/TUV/UL
モデル番号: M19
お支払配送条件:
最小注文数量: 交渉
価格: 交渉可能
パッケージの詳細: 1.ビニール袋;2.カートン;3.顧客の要件に従って
受渡し時間: 3~6営業日
支払条件: T/T,D/P,L/C,D/A,ウェスタン・ユニオン
供給の能力: 月間100,000ペア
連絡先
詳細製品概要
ピン: 18ピン 電流定格: 信号用5A
定格電圧: 300V 材料: ナイロン
難燃性等級: UL94-V0 シール材: 密封のガスケット
ハイライト:

M19 IP67防水コネクタ、18ピンクイックコネクタ、屋外防水ケーブルコネクタ

,

18 pin quick connector

,

outdoor waterproof cable connector

IP67防水コネクタ M19 18ピン ワイヤートゥボード データ用
製品概要

18ピンケーブルコネクタ M19 ワイヤートゥワイヤー/ボード 屋外クイックロック信号コネクタ

主な特徴
  • 仕様: M19規格、18ピン設計、通信機器の信号伝送に特化
  • 保護: IP67防水・防塵、屋外の雨や埃に強く、過酷な屋外環境に適しています
  • 接続: クイックコネクト設計、スムーズな抜き差しと確実なロックにより、現場での設置・メンテナンス効率を向上
  • 伝送: 高導電性素材のピン、安定した信号伝送、干渉と減衰を低減
  • 耐久性: UV耐性、耐衝撃性シェル、高温・低温耐性、長期屋外使用に適しています
  • 用途: ベースステーション、屋外スイッチなど、様々な屋外通信機器に直接接続
技術仕様
パラメータ 仕様
極数 18ピン
定格電流 最大5A
定格電圧 最大300VAC
耐電圧 1500VAC @ 60秒
接触抵抗 最大10mΩ
絶縁抵抗 500VDCで500MΩ
動作温度 -40℃~+105℃
IPクラス 嵌合時IP67 (1m / 30分)
モールド材質 PA66
コンタクト/端子材質 金メッキ真鍮
シール材 シリコン
最小ワイヤ外径 3.0mm~6.0mm
最大ワイヤ外径 8.0mm~10.0mm
最大ケーブル断面積 0.5mm²~2.5mm²
構成オプション
  • プッシュロッククイックリリースシステム
  • マルチコアオプション: 電源用 2ピン、3ピン、4ピン、5ピン
  • 電源・信号複合用 3+2ピン、3+3ピン、3+4ピン、3+5ピン、3+9ピン、2+20ピン
  • 信号用 6ピン、7ピン、8ピン、9ピン、10ピン、11ピン、12ピン、14ピン、16ピン、18ピン
  • フィールドアセンブリバージョン: ワイヤートゥワイヤーおよびワイヤートゥボードオプション
  • 定格電流5Aで長時間動作
  • ケーブルアセンブリサービス対応
  • OEM/ODM歓迎
応用産業
  • 成長ライト
  • 通信アプリケーション
  • 製品コーディングマシン
  • 在庫製品コーディング
  • インクジェットシステム
  • ソーラーシステム
  • 産業用インクジェット機器
  • 電力機器
  • 実験室法医学・病理学機器
  • 通信機器
  • 重機
製品設計
M19 18 Pin Waterproof Connector Design Diagram M19 Connector Technical Specifications and Dimensions
よくある質問
Q: あなたは工場ですか、それとも商社ですか?

A: 私たちは工場です。中国深セン市宝安区、Ulinkcon工業団地に位置しています。

Q: 製品の購入方法を教えてください。

A: 以下の手順で行ってください。

  • 定格電流とコンタクト数を確認
  • アセンブリスタイルを確認
  • ケーブルワイヤゲージを確認
  • ケーブル長と材質を確認
Q: 製品は認証されていますか?どのような認証がありますか?

A: 当社の全製品はRoHS、CE、その他の国際基準によって認証されています。特定の認証(例: FCC、UL)は、ターゲット市場に基づいてご要望に応じて提供できます。
