| 起源の場所: | 中国 |
| ブランド名: | Ulinkcon |
| 証明: | CE/Rohs/TUV/UL |
| モデル番号: | M25 |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱 |
| 受渡し時間: | 5~8 営業日 |
| 支払条件: | T/T、D/A、D/P、マネーグラム、L/C |
| 供給の能力: | 毎月100000ペア |
| 防水定格: | IP67 | ピン数: | 22ピン電源&信号 |
|---|---|---|---|
| シール材: | 密封のガスケット | 接点材質: | 真鍮金メッキ |
| 温度範囲: | -40℃～+105℃ | 色: | 赤/青/緑 |
| ハイライト: | PA66 waterproof power connector,M25 outdoor LED connector,2+20 pin signal connector |
||
Are you a factory or trading company? We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China How to buy your products? You need to do as followings: * Confirm Current Rating and Number of Contacts * Confirm Assembly style * Confirm Cable Wire guage * Confirm Cable Length and Material. 2+20 Pin LED Quick Release IP67 Wire To Board Connectors

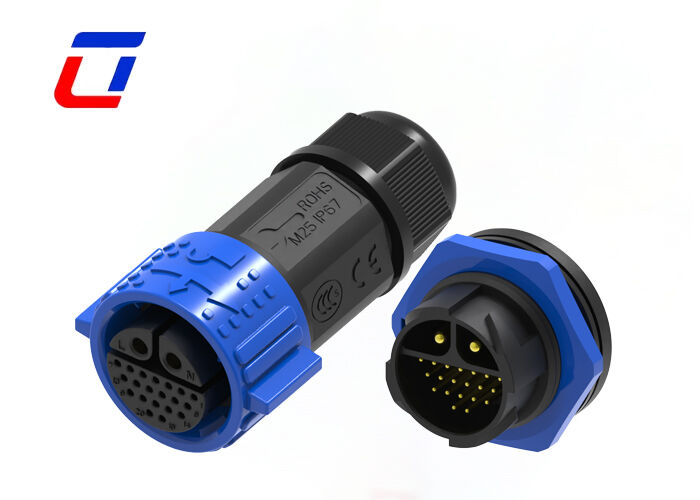

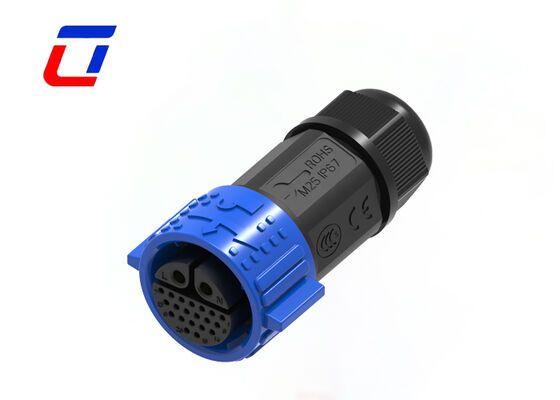

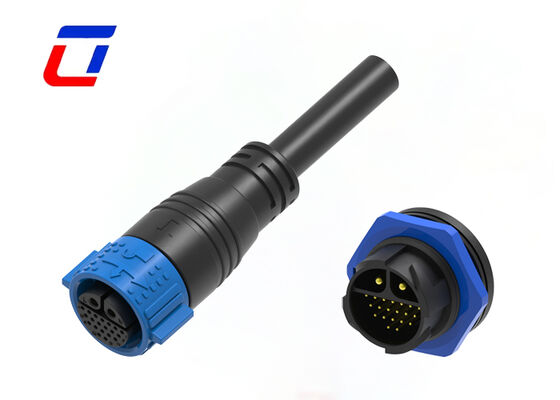

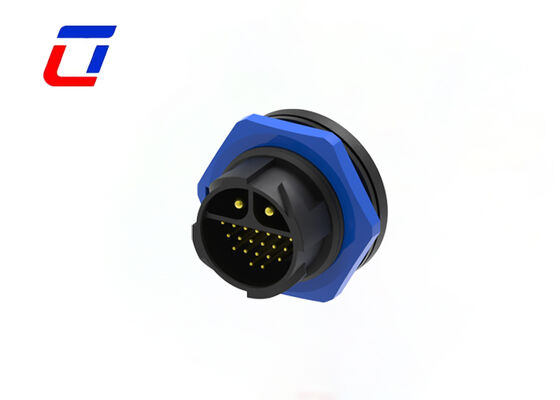

M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector
Product Overview
This M25 waterproof connector adopts a 2+20 pin integrated power and signal design, made of high-quality flame-retardant PA66 nylon. It integrates power and signal transmission functions with excellent outdoor waterproof, weather resistance and anti-aging performance. Specially designed for outdoor LED lighting and industrial control equipment.
Key Features
Accurate Specifications & Stable Dual Transmission: Featured with a 2Pin power plus 20Pin signal integrated structure, it realizes independent power and signal transmission without mutual interference. It supports high-current power supply and high-precision signal conduction, ensuring stable operation of various LED landscape lighting devices.
Premium PA66 Material, Flame Retardant & Weather Resistant: The connector housing adopts UL-certified PA66 engineering nylon with a UL94 V-0 flame retardant rating. It delivers excellent high and low temperature resistance, corrosion resistance and UV anti-aging performance, capable of resisting extreme outdoor environments such as acid rain and salt spray to extend service life effectively.
IP67 High-level Outdoor Waterproof Performance: Adopted high-quality silicone sealing gaskets for superior tightness, this connector reaches IP67 dustproof and waterproof grade. It can work stably in long-term outdoor environments such as open air, humidity and rain, preventing equipment failure caused by water infiltration and dust accumulation.
Industrial Durability & Easy Quick Installation: The pins are made of tin-plated brass with excellent conductivity, stable contact performance and long plugging service life. Equipped with standard M25 quick self-locking structure, it features easy installation, firm connection, shock resistance and anti-drop performance, which is widely compatible with most outdoor LED and industrial control supporting equipment.
Application Industries
Technical Specifications
Electrical Parameters
Number of Poles
22pin wire to board connector
Current Rating
20A +5A
Voltage Rating
500VAC max
Durability Voltage
2500VAC @ 60 s
Technical Parameters
Contact Resistance
10 mΩ max
Insulation Structure
500 MΩ at 500VDC
Operating Temperature
-40°C ~ +105°C
IP Class
IP67 (1m / 30min)
Mold Material
PA66
Contact/Terminal Material
Gold Plated Brass
Seal Material
Silicone
Operation Parameters
Voltage Rating
600VAC max
Current Rating
40A max
Min Wire Size OD
6.5mm ~ 10mm
Max Wire Size OD
10.5mm ~ 18mm
Max Cable Cross Section Area
0.5mm² ~ 6.0mm²
Product Configuration
Product Dimension
Technical Details
Frequently Asked Questions
What is rated voltage?
Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.
