Name: M16 IP67 Waterproof Molded Cable To Cable Connectors Push Lock 8 Pin Data Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

ホーム製品防水データコネクタ

M16 IP67 Waterproof Molded Cable To Cable Connectors Push Lock 8 Pin Data Connector

商品の詳細:

起源の場所:	中国
ブランド名:	Ulinkcon
証明:	CE/Rohs/TUV/UL
モデル番号:	M16

お支払配送条件:

最小注文数量:	交渉
価格:	交渉可能
パッケージの詳細:	標準輸出カートン
受渡し時間:	5~8 営業日
支払条件:	T/T、D/A、D/P、マネーグラム、L/C
供給の能力:	毎月100000ペア

連絡先

詳細製品概要

材料:	PA66	防水定格:	IP67
現在:	5A	ピン数:	8PINデータコネクタ
難燃性等級:	UL94-V0	応用:	電力、自動車、LED、電気機器、LED照明など
ハイライト:	M16 waterproof data connector , 8 pin push lock connector , IP67 molded cable connector

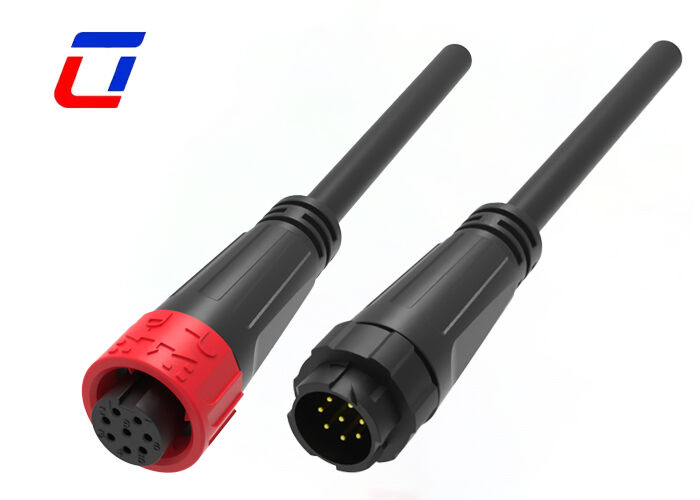

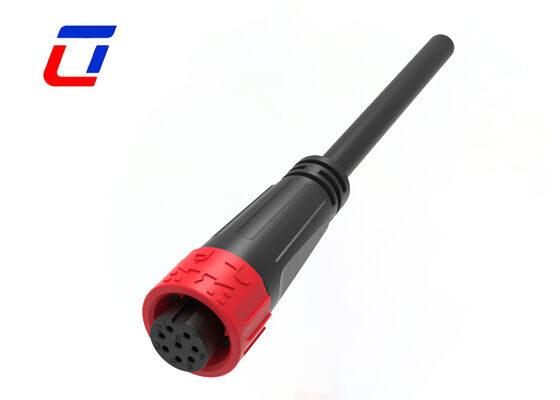

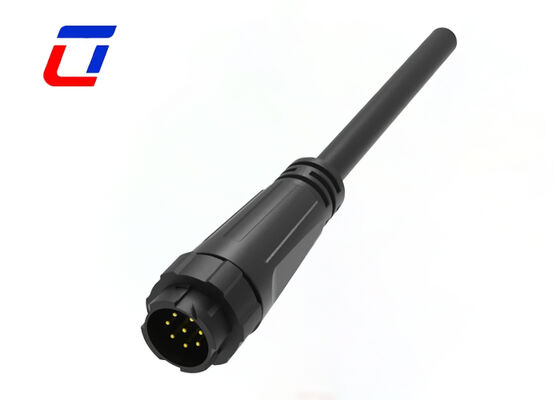

M16 IP67 Waterproof Cable Connectors 8 Pin Male To Female For Data

Product Overview

The M16 8Pin IP67 waterproof molded cable-to-cable connector is a high-precision connection solution specially designed for multi-channel data signal transmission. Adopting one-piece cable injection molding technology and advanced tool-free Push Lock self-locking structure, it enables fast plug-and-lock connection without threaded rotation.

Key Features

Integrated Molded Cable Structure for Superior Durability: Adopting seamless integral injection molding for connector and cable, it eliminates structural gaps and hidden failure risks of traditional spliced connectors. The integrated body delivers outstanding tensile resistance, bending resistance and drop resistance, effectively preventing wire breakage, water leakage and loose connection caused by frequent bending, dragging and long-term vibration.
8-Pin High-Density Layout for Accurate Multi-Channel Data Transmission: The optimized 8-core independent channel design is professionally tuned for low-voltage high-precision data transmission. Each signal channel is isolated without crosstalk, supporting synchronous transmission of multiple control signals, sensor data and linkage commands. It features low transmission delay and high signal consistency for precise industrial system operation.
Tool-Free Push Lock Self-Locking Design: Upgraded elastic buckle self-locking structure allows effortless plug-in locking and simple press release. It provides clear locking feedback and constant clamping tension. Effectively anti-loosening against equipment vibration, wire dragging and outdoor jitter, it avoids signal interruption and intermittent connection faults and reduces long-term maintenance costs.
IP67 Full Ingress Protection for Harsh Environments: Equipped with high-elastic integrated sealing gaskets and molded seamless structure, it fully blocks rainwater, moisture, dust, oil and dew penetration. It maintains stable internal signal transmission in humid workshops, dusty factories and open-air outdoor working environments, protecting internal circuits from environmental corrosion.
Professional Cable-to-Cable Design for Flexible Wiring: Different from panel-mounted connectors, this pure cable-to-cable structure requires no fixed mounting hole limits. It supports cross-device long-distance wiring, flexible layout and movable equipment connection. The compact M16 size adapts to narrow installation spaces and diverse precision electromechanical equipment matching.
Industrial-Grade Anti-Interference Performance: Made of high-insulation flame-retardant engineering material, the connector features excellent electromagnetic shielding performance. It effectively filters external electromagnetic interference, preventing signal distortion, data packet loss and signal jump, ensuring high stability and accuracy of data transmission in complex industrial electromagnetic environments.

Product Specifications

Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, socket
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Poles	8
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Operating Temperature Range	-40°C to +105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Durability Rating	500 Cycles
UL Flammability Rating	UL 94V-0

Additional Features

Push lock quick release system for efficient operation
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
Field assembly version with both wire-to-wire and wire-to-board options
Current rated 5A for long-term continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome for specialized requirements

Application Industries

Communications Equipment
Product Coding Machines and Inkjet Systems
Inventory Product Coding
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimensions

Technical Details

Frequently Asked Questions

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

How many materials you can provide?

There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
