低電圧 300V M16 7ピン データ 迅速接続 IP67 防水 男性 女性 接続 中国

低電圧 300V M16 7ピン データ 迅速接続 IP67 防水 男性 女性 接続 中国

  • 低電圧 300V M16 7ピン データ 迅速接続 IP67 防水 男性 女性 接続 中国
  • 低電圧 300V M16 7ピン データ 迅速接続 IP67 防水 男性 女性 接続 中国
  • 低電圧 300V M16 7ピン データ 迅速接続 IP67 防水 男性 女性 接続 中国
  • 低電圧 300V M16 7ピン データ 迅速接続 IP67 防水 男性 女性 接続 中国
低電圧 300V M16 7ピン データ 迅速接続 IP67 防水 男性 女性 接続 中国
商品の詳細:
起源の場所: 中国
ブランド名: Ulinkcon
証明: CE/Rohs/TUV/UL
モデル番号: M16
お支払配送条件:
最小注文数量: 交渉
価格: 交渉可能
パッケージの詳細: 1.ビニール袋;2.カートン;3.顧客の要件に従って
受渡し時間: 3~6営業日
支払条件: T/T、D/P、L/C、D/A、Western Union、MoneyGram
供給の能力: 月間100,000ペア
連絡先
詳細製品概要
ピン: 7ピン 電流定格: 5A 300V
保護レベル: IP67 難燃性等級: UL94-V0
接点材質: 真鍮金メッキ 特定のアプリケーションシナリオ: 灌漑システム/産業用センサー
ハイライト:

低電圧 300V M16 コネクタ、7 ピンデータクイックコネクタ、IP67 防水オスメスコネクタ

,

7 Pin Data Quick Connector

,

IP67 Waterproof Male Female Connector

5A M16 ナイロン7ピン防水コネクタ 300V データクイックロックコネクタ
製品概要
1安全な低電圧とマルチチャネルデータ送信
このM167ピンコネクタは300V低電圧で安全な動作のために設計され,同時多チャンネルデータ信号伝送をサポートします.合理的なピンレイアウトは,効果的に信号クロスストックとデータ損失を回避します低電力消費と安定した信号精度により,インテリジェント機器と産業用データ接続のシナリオに最適です.
2. ユーザーフレンドリーなクイック接続設計
プラグアンドプレイの高速接続構造を採用し,精密な男性から女性へのアライナメント. ツールフリーインストールにより,高速な配線と効率的な機器デバッグが可能.頻繁に解体し,定期的な保守をサポートします日常のエンジニアリング用には高度な互換性と便利な操作をもたらします.
3IP67 プロフェッショナル・オール・ウェザー・プロテクション
IP67の防水・防塵基準に達する 高精度密封構造で 雨水の浸水や 塵の蓄積に 効果的に抵抗します室外環境における湿度や霧の侵食密封はピン酸化,腐食,短回路障害を防止し,厳しい労働条件下で安定した性能を保証します.
4安全で頑丈な隔離住宅
高品質の保温工学材料で完全に鋳造され,電流を防止し低電圧操作の安全性を確保するための優れた電気保温を提供します.優れた耐磨性耐圧性,耐老化性があるため,長時間使用後も裂け目やゆるくなることなく安定した構造を維持します.
5ユニバーサル M16 サイズ&汎用的なアプリケーション
標準M16の円形サイズは,ほとんどの産業用コントローラ,屋外用電気装置,インテリジェント機器と高度に互換性があります.インテリジェント制御端末防護装置や小型自動配線システム
主要な特徴
  • 簡単にインストールするためのプッシュロック・クイック・リリース・システム
  • 複数のコアオプション: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 24Pin構成
  • フィールド組立バージョン:ワイヤーからワイヤーへ,ワイヤーからボードへ
  • カスタムオプションでサポートされるケーブル組み立てサービス
  • OEM/ODMサービス歓迎
電気パラメータ
ポーランド人数 7ピン
現在の格付け 5A 最大
定位電圧 60VAC 最大
耐久性 電圧 500VAC @ 60秒
テクニカルパラメータ
接触抵抗 10 mΩ 最大
断熱構造 500 MΩ 500VDC で
動作温度 -40°C ~ +105°C
IPクラス IP67 (1m / 30min) マッチング時
模具素材 PA66
接触/端末材料 黄金で覆われた銅
密着物 シリコン
操作パラメータ
定位電圧 最大300VAC
現在の格付け 5A 最大
ワイヤサイズ OD 3.0mm ~ 6.0mm
ワイヤの最大サイズ OD 8.0mm ~ 10.0mm
最大ケーブル横断面 0.5mm2 ~ 2.5mm2
応用産業
  • 成長灯
  • 通信機器
  • 製品コード化機械
  • 製品コードシステム
  • インクジェットシステム
  • 太陽系
  • 工業用インクジェット機器
  • 電源装置
  • 検査室の法医学・病理学機器
  • 重機械
製品画像

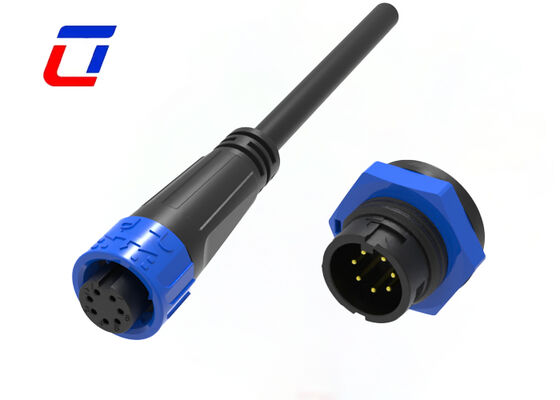

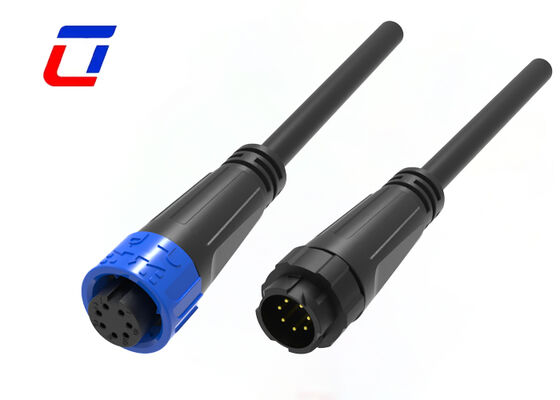

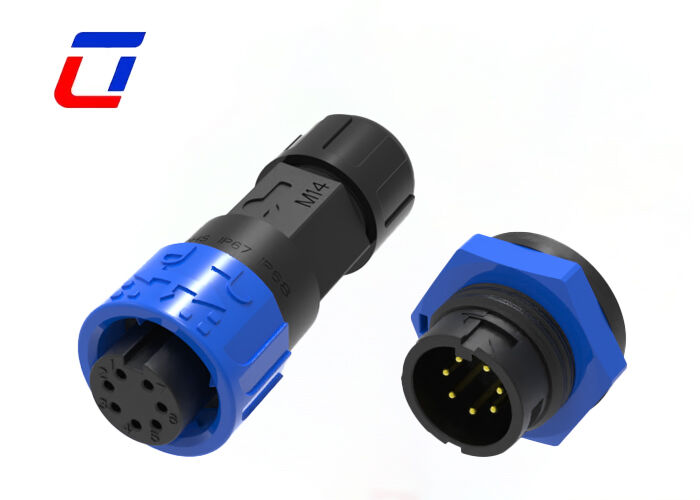

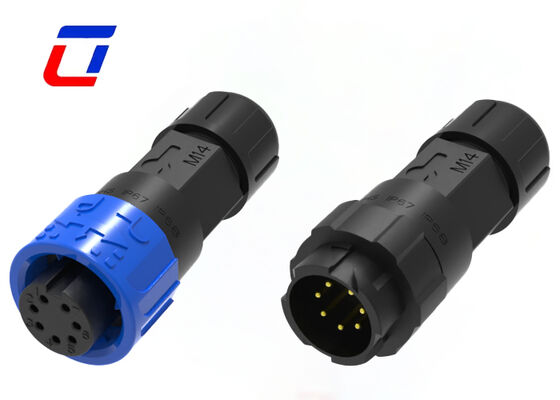

M16 7-pin waterproof connector design specifications and technical details M16 7-pin waterproof connector application and installation examples
よく 聞かれる 質問
荷物をどうやって追跡する?

商品が発送されたら,追跡番号と物流プラットフォームのリンクを送信します.オンラインでリアルタイム状態を追跡したり,最新情報のためにチームと連絡することができます.

あなたの工場はどこですか.

中国深?? 市バオアン区 ウリンコン工業公園に位置する.

 商品を受け取った後に支払うことはできますか.

生産のスムーズさを保証するために,最初の協力の場合は,事前支払いが必要です.長期にわたる信頼された顧客では,いくつかの成功した注文後に柔軟な支払い条件について議論することができます.
